100Ah 48V Rack mounted Lithium Battery for Leisure, Solar, Wind and Off-grid applications - view 1
1 / 2
Product Information

100Ah 48V rack mounted lithium battery module for various applications

Key features

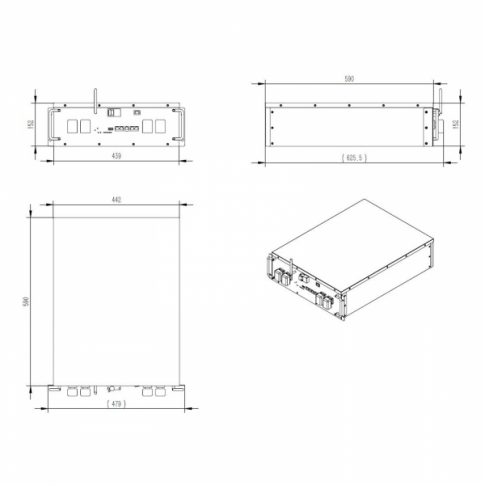

Nominal voltage: 51.2V Nominal capacity: 100Ah Depth of discharge: 95% Life cycle: 6000 cycles @95% DoD, at 25 deg C Recommended charge voltage: 58.4V Maximum charge current: 100A Recommended charge current: 50A Maximum discharge current: 100A Recommended discharge current: 50A Operating charge temperature: from 0 deg C to +45 deg C Operating discharge temperature: from -10 deg C to +45 deg C Humidity: 5-95% (RH) Altitude: <4000m Communication ports: RS485/RS232/CAN Size: 590 x 442 x 152 mm Weight: 45kg

Specifications

Range
LiFePO4 Batteries
Size
590 x 442 x 152 mm
Weight
45kg
Voltage
48V, 2V, 4V
Amps
100A, 50A
Battery type
LiFePO4
Cable core size
152 mm
Delivery estimate
5-7 working days
Free delivery
Yes
Altitude
<4000m
Communication Ports
RS485/RS232/CAN
Depth Of Discharge
95%
Humidity
5-95% (RH)
Life Cycle
6000 cycles @95% DoD, at 25 deg C
Maximum Charge Current
100A
Maximum Discharge Current
100A
Nominal Capacity
100Ah
Nominal Voltage
51.2V
Operating Charge Temperature
from 0 deg C to +45 deg C
Operating Discharge Temperature
from -10 deg C to +45 deg C
Product family
Batteries & Storage
Recommended Charge Current
50A
Recommended Charge Voltage
58.4V
Recommended Discharge Current
50A

Overview

What is the LFP48-100R Rack-Mounted Lithium Battery? The LFP48-100R is a high-performance 100Ah 48V Lithium Iron Phosphate (LiFePO4) battery designed for rack-mounted energy storage solutions. Built for safety, efficiency, and versatility, this battery is ideal for powering advanced systems, including renewable energy setups and backup power applications. Equipped with an advanced Battery Management System (BMS) , it actively manages charging and discharging processes while monitoring voltage, current, and temperature. The BMS ensures the battery operates safely and efficiently, providing reliable performance and protecting against potential issues such as overcharging, over-discharging, or extreme temperatures. Key Benefits of the LFP48-100R: - Scalability : Supports parallel connections for up to 15 batteries in total for increased capacity, with automatic address configuration for streamlined multi-battery setups. - Extended Lifecycle : Offers an impressive 6,000 cycles at 95% depth of discharge , ensuring years of dependable performance. - Built-In Safety Features : Comprehensive BMS protection against: - Overcharging - Over-discharging - Over-current - High or low temperatures - Short circuits - Optimized Performance : Intelligent management functions, including cell balancing, current limiting, and capacity retention calculations. - Soft Start Functionality : Reduces high current impact during inverter startups, enhancing system longevity. - Smart Monitoring : Connect via Wi-Fi or Bluetooth to the mobile app to manage settings, monitor performance, and select communication protocols (CAN and RS485) for compatibility with major inverter brands. Deep Cycle Applications This rack-mounted battery is perfect for a range of applications requiring robust, scalable energy storage, including: - Renewable Energy Systems : Ideal for solar and wind energy storage in both residential and commercial setups. - Backup Power : Ensures reliable operation for UPS systems and critical equipment during outages. - Telecommunications : Provides stable power for telecom and networking equipment. - Industrial and Commercial Use : Powers lighting systems, automation, and advanced energy management systems. Longevity and Maintenance Designed to last for over 10 years , this battery minimizes maintenance needs while delivering cost-effective, long-term energy storage. Packaging The battery is securely packaged for safe transportation and includes battery terminal covers , screws and a user manual for easy installation and operation. For more details and technical specifications, click on the Details and Specifications tab.

Specifications

Battery specifications: - Nominal voltage: 51.2V - Nominal capacity: 100Ah - Depth of discharge: 95% - Life cycle: 6000 cycles @95% DoD, at 25 deg C - Recommended charge voltage: 58.4V - Maximum charge current: 100A - Recommended charge current: 50A - Maximum discharge current: 100A - Recommended discharge current: 50A - Operating charge temperature: from 0 deg C to +45 deg C - Operating discharge temperature: from -10 deg C to +45 deg C - Humidity: 5-95% (RH) - Altitude: <4000m - Communication ports: RS485/RS232/CAN - Size: 590 x 442 x 152 mm - Weight: 45kg This product is covered by a 5 year warranty . For more information please refer to our Terms and Conditions .

SKULFP48-100R
