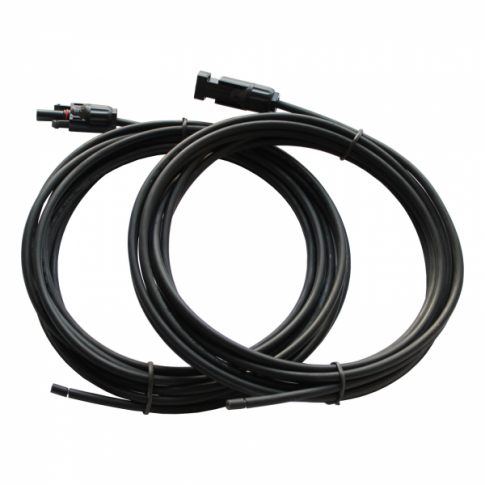

10m single core extension cable (4.0mm) with MC4 connectors - view 1
Product Information

Brand new 10m solar extension cable (4.0mm cross section) with waterproof MC4 connectors for solar panels up to 160W

Key features

Conductor: tinned copper Cross section: 4.0mm Conductor resistance: 5.09 Ohm/km (20C) Insulation and Jacket: 120C XLPE Working temperature range: -40C to +120C Certification: TUV Outer diameter: 6.1mm

Specifications

Range
Solar Cable
Wattage
160W
Cable core size
4.0mm
Delivery estimate
5-7 working days
Free delivery
Yes
Certification
TUV
Conductor
tinned copper
Conductor Resistance
5.09 Ohm/km (20C)
Cross Section
4.0mm
Insulation And Jacket
120C XLPE
Outer Diameter
6.1mm
Product family
Cabling & Connectors
Working Temperature Range
-40C to +120C

Overview

This single core solar extension cable 4.0mm cross section has been specially designed for solar panels to carry high current and have negligible power loss. It comes with waterproof MC4 connectors ("male" on one end, "female" on the other) which can be easily connected to similar MC4-type connectors coming with most solar panels, including Photonic Universe solar panels. This cable is suitable for all weather conditions including cold and hot temperatures. 4.0mm cross section is usually enough for off-grid 12V solar panels and systems up to 160W, or on-grid panels (typical voltage 30-60V) with higher power rating. The cable can be cut in half if required to make two 5m tails.

Specifications

Cable specifications: - Conductor: tinned copper - Cross section: 4.0mm - Conductor resistance: 5.09 Ohm/km (20C) - Insulation and Jacket: 120C XLPE - Working temperature range: -40C to +120C - Certification: TUV - Outer diameter: 6.1mm

SKU10M40
