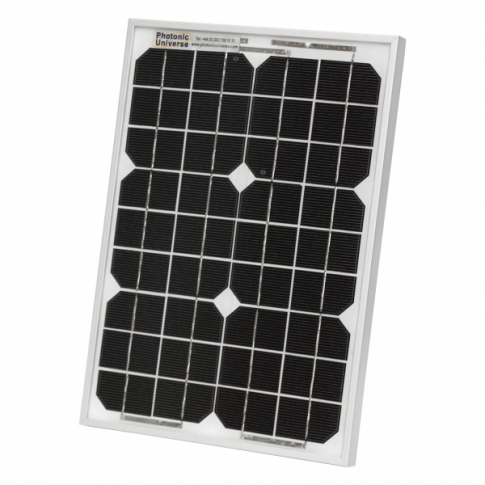

10W monocrystalline solar panel (trickle charger) - view 1
1 / 2
Product Information

10W monocrystalline solar panel with 2m cable for charging or trickle charging a 12V battery in a motorhome, camper, caravan, boat or any other 12V system

Key features

Peak power: 10W Maximum power voltage: 17.5V Maximum power current: 0.57A Open circuit voltage: 21.6V Short circuit current: 0.61A Power allowance range: +/- 3% Dimensions: 34 x 24 x 2 cm Weight: 1.2 kg 4 mounting holes 2m of 1.5mm cable

Specifications

Range
Small solar panels 5W-80W
Weight
1.2 kg
Voltage
12V, 5V, 6V
Wattage
10W, 5W, 80W
Amps
0.57A, 0.61A
Cable core size
1.5mm
Delivery estimate
5-7 working days
Free delivery
Yes
Dimensions
34 x 24 x 2 cm
Maximum Power Current
0.57A
Maximum Power Voltage
17.5V
Open Circuit Voltage
21.6V
Peak Power
10W
Power Allowance Range
+/- 3%
Product family
Solar Panels
Short Circuit Current
0.61A

Overview

This waterproof high efficiency 10W solar panel is perfect for permanent outdoor use to provide free power either directly, such as powering lights or a fan, or for charging 12V battery / battery bank to then power various devices for many applications such as in a motorhome, caravan, camper, car, boat, shed, garden or farm. The long-lasting, high-efficiency, monocrystalline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. Waterproof design ensures the panel can be used in all weather conditions. The solar panel comes with 2m cable attached to the waterproof connection box at the back. If you are planning to use this solar panel for charging a 12V battery: please note this panel requires a solar charge controller / regulator to charge a 12V battery. If you don't have one and would like to buy it, please check our shop category with solar charge controllers.

Specifications

Solar panel specifications: - Peak power: 10W - Maximum power voltage: 17.5V - Maximum power current: 0.57A - Open circuit voltage: 21.6V - Short circuit current: 0.61A - Power allowance range: +/- 3% - Dimensions: 34 x 24 x 2 cm - Weight: 1.2 kg - 4 mounting holes - 2m of 1.5mm cable The product is covered by 1 year workmanship warranty provided by Photonic Universe. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions .

SKUBST-10M
