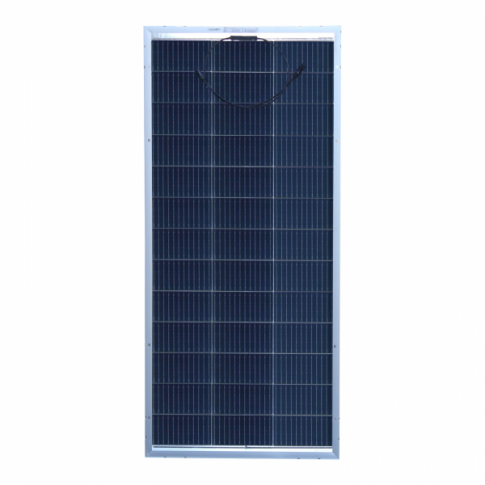

200W bi-facial monocrystalline solar panel with 60cm cable - view 1
1 / 2
Product Information

200W monocrystalline bi-facial solar panel made of high efficiency solar cells with 60cm of special solar cable and MC4 connectors

Key features

Peak power: 200W Maximum power voltage: 22.45V Maximum power current: 8.91A Open circuit voltage: 26.29V Short circuit current: 9.41A Power allowance range: +/- 3% Dimensions: 1480 x 670 x 30mm Weight: 10.5 kg 2 x 60cm of high quality single core solar cable 4.0mm cross section Male and female MC4 connectors

Specifications

Range
Medium solar panels 100W-280W
Weight
10.5 kg
Voltage
45V, 29V
Wattage
200W, 100W, 280W
Amps
8.91A, 9.41A
Cable core size
30mm
Delivery estimate
5-7 working days
Free delivery
Yes
Dimensions
1480 x 670 x 30mm
Maximum Power Current
8.91A
Maximum Power Voltage
22.45V
Open Circuit Voltage
26.29V
Peak Power
200W
Power Allowance Range
+/- 3%
Product family
Solar Panels
Short Circuit Current
9.41A

Overview

This high efficiency, waterproof, 200W bi-facial monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps). This panel has bifacial solar technology to capture sunlight on both the front and rear surfaces, significantly increasing energy output by harnessing reflected light from the ground. The solar yield can be increased by up to 20% depending on the mounting angle and mounting surface. This panel is ideal for various installations, including ground-mounted systems, rooftops, and building-integrated photovoltaics, offering enhanced performance and durability. The panel is fitted with 60cm of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable . The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller. The long-lasting, high-efficiency monocrystalline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions . This panel also features innovative multi-busbar solar cells , which are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even in high ambient temperatures. If you are planning to use this solar panel to charge a 12V battery or battery bank: please note this panel requires a solar charge controller / regulator to charge a 12V battery. To view the full range of solar charge controllers we offer, please visit the Solar Charge Controllers category of our online shop. Click on the Details and Specifications tab for more information about this product.

Specifications

Solar panel specifications: - Peak power: 200W - Maximum power voltage: 22.45V - Maximum power current: 8.91A - Open circuit voltage: 26.29V - Short circuit current: 9.41A - Power allowance range: +/- 3% - Dimensions: 1480 x 670 x 30mm - Weight: 10.5 kg - 2 x 60cm of high quality single core solar cable 4.0mm cross section - Male and female MC4 connectors This product is covered by a 5 year workmanship warranty provided by Photonic Universe. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions . In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

SKUSWB-200M
