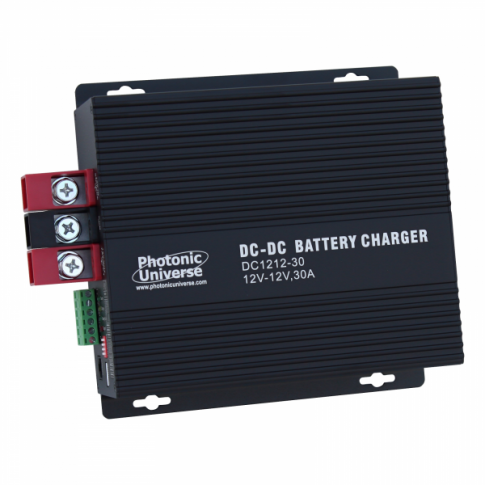

30A 12V DC to 12V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries - view 1
1 / 2
Product Information

30A DC to DC battery charger for fast charging of a 12V battery / battery bank from another 12V battery / battery bank with its own energy source.

Key features

  • Source battery voltage: 12V Battery input voltage: 10.5V - 16V
  • Effective D+ signal voltage range: 8V - 16V Maximum charging power: 390W Maximum charging current of target battery: 30A Minimum recommended source battery capacity: 60Ah Target rated voltage: 12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion) Target battery capacity: 45Ah - 280Ah Target battery operating voltage range: 8V - 16V Bulk charge voltage: 14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion) Float charge voltage: 13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion) Temperature compensation: -3mV/ deg C/2V Operating temperature: -20 deg C to 50 deg C Self-consumption current: 17mA Relay signal output: 12V / 1A Weight: 1.44kg Dimensions: 190 x 194 x 70mm

Specifications

Range
DC to DC Battery Chargers
Weight
1.44kg
Voltage
12V, 5V, 16V, 8V, 1V, 7V, 3V, 4V, 6V, 2V
Wattage
390W
Amps
30A, 1A
Battery type
LiFePO4
Cable core size
70mm
Delivery estimate
5-7 working days
Free delivery
Yes
Battery Input Voltage
10.5V - 16V
Bulk Charge Voltage
14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion)
Dimensions
190 x 194 x 70mm
Effective D Signal Voltage Range
8V - 16V
Float Charge Voltage
13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion)
Maximum Charging Current Of Target Battery
30A
Maximum Charging Power
390W
Minimum Recommended Source Battery Capacity
60Ah
Operating Temperature
-20 deg C to 50 deg C
Product family
Charge Controllers & Chargers
Relay Signal Output
12V / 1A
Self Consumption Current
17mA
Source Battery Voltage
12V
Target Battery Capacity
45Ah - 280Ah
Target Battery Operating Voltage Range
8V - 16V
Target Rated Voltage
12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion)
Temperature Compensation
-3mV/ deg C/2V

Overview

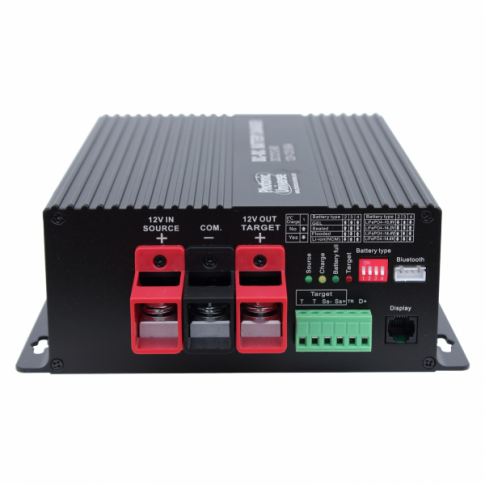

This Photonic Universe 30A advanced DC-DC Battery Charger is fully automatic and ideal for leisure vehicles, commercial and special purpose vehicles, boats, and any other systems with multiple 12V batteries or power sources. The charger operates using an adjustable three-stage charging programme and is suitable for Lead Acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. The product is compact, lightweight and features high frequency switching and buck-boost power conversion technology for reliable, consistent performance. Key Features: - Fully-automatic, high-frequency, multi-stage charging: ensures the battery is charged safely and quickly. Pulsed charging keeps temperatures low and helps ensure a long battery life. - Easy battery type selection: with the use of dip switches, the unit can be switched between Lead Acid, AGM, Gel, LiFePO4, or Lithium-ion battery types. - Safe unattended charging: the unit features inbuilt safety functions (protection against overload, overheating, overvoltage, over-discharge, short circuit, and reverse discharge of the battery), that allow the charger to be left permanently connected to the batteries for unattended automatic charging. - Advanced temperature protection and compensation: when paired with an optional external temperature sensor (sold separately), the charger provides advanced temperature protection for the batteries. For Lead Acid batteries, the charger adjusts the charging voltage to compensate for ambient temperature, ensuring optimal charging and extending battery life. For Lithium batteries, the temperature sensor unlocks a charging protection to be selected to prevent charging when below 0 deg C which could damage the battery. - Data monitoring: the charger includes ports for a remote meter or a Bluetooth module (both sold separately), allowing data to be viewed on an LCD display or through a mobile phone app when connected. - Continued charging during battery/load use: the charger will continue to operate at full power whilst energy is drawn from the battery during use. Any 12V loads may also be left permanently connected and running whilst the DC-to-DC charger is in operation, and will be protected against overvoltage and voltage fluctuations. - Ignition on/off control: via connection to the ignition control through the D+ terminal, this charger can be set to begin battery-to-battery charging immediately when vehicle ignition is turned on, and stop charging when the vehicle is turned off. - Wake - up function for Lithium batteries: when the Battery Management System (BMS) of a lithium battery goes into the protection mode, the charger can automatically activate the BMS and continue charging the lithium battery. Additional features: This charger can provide a signal for an external relay (not supplied), so that when the target battery is connected to a heavy load, the battery banks can be directly connected to each other, allowing the source battery to assist the target battery in starting high-current electrical loads. It features optional terminals that enable greater precision in voltage measurement of the target battery by bypassing the voltage drops in heavy-duty charging cables. The charger includes 4 LED indicators to display the battery charging stage and diagnostic information. Compatibility: This DC-to-DC battery charger is suitable for use with 12V lead acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. It is not compatible with 24V batteries or a combination of 12V and 24V batteries. Click on the 'Details and Specifications' tab for more information about this product.

Specifications

Specifications: - Source battery voltage: 12V - Battery input voltage: 10.5V - 16V - Effective D+ signal voltage range: 8V - 16V - Maximum charging power: 390W - Maximum charging current of target battery: 30A - Minimum recommended source battery capacity: 60Ah - Target rated voltage: 12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion) - Target battery capacity: 45Ah - 280Ah - Target battery operating voltage range: 8V - 16V - Bulk charge voltage: 14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion) - Float charge voltage: 13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion) - Temperature compensation: -3mV/ deg C/2V - Operating temperature: -20 deg C to 50 deg C - Self-consumption current: 17mA - Relay signal output: 12V / 1A - Weight: 1.44kg - Dimensions: 190 x 194 x 70mm This product is covered by a 1 year manufacturer warranty . For more information please refer to our Terms and Conditions .

SKUDC1212-30
