Cutting-edge 350W MCS-certified semi-flexible solar panel with 182mm silicon wafers, PERC technology, and half-cut cells perfect for curved rooftops, weak load-bearing surfaces, and corrugated metal roofs.
Peak power: 350W Maximum power voltage: 27.47V Maximum power current: 12.75A Open circuit voltage: 33.17V Short circuit current: 13.70A Protection: IP68 Dimensions: 1571 x 1137 x 3.4 mm Weight: 7.4 kg 2 x 0.3m of 4.0mm² solar cable attached
The FMCS-350M is a cutting-edge 350W MCS-certified semi-flexible monocrystalline solar panel that redefines efficiency and adaptability. Built with 182mm silicon wafers, PERC technology, and half-cut cells , this panel maximises power output while reducing energy losses. Its innovative design ensures exceptional durability, lightweight construction, and superior performance , even in challenging conditions. Perfect for curved rooftops, weak load-bearing surfaces, and corrugated metal roofs , the FMCS-350M is the ideal solution for residential, commercial, and industrial solar applications . Advanced energy efficiency With an advanced combination of PERC and half-cut cell technology , the FMCS-350M achieves superior energy conversion efficiency, ensuring maximum power output from every module. By minimising adaptive losses, this panel optimises energy generation, making it a high-performance choice for solar installations in various environments. Exceptional power-to-weight ratio & versatile installation Designed for ease of installation and adaptability, the FMCS-350M is exceptionally lightweight at just 4.1kg per unit area , making it 70% lighter than conventional solar panels . Despite its ultra-lightweight construction, it delivers an impressive 200W per square meter of installation area , making it ideal for surfaces with low load-bearing capacity , such as corrugated metal roofs, coal sheds, and curved rooftops . Enhanced performance in shaded conditions with integrated junction box diodes The FMCS-350M features a junction box equipped with three bypass diodes , ensuring optimal performance and reliability in various conditions. The integrated diodes mitigate the risk of hot spots caused by shaded or damaged cells, protecting the panel from potential long-term damage. By allowing the panel to continue generating electricity efficiently, even when partially shaded, the diodes enhance total energy production. In scenarios where only a portion of the panel is shaded, the bypass diodes help maintain consistent power flow, preventing significant energy loss. By r educing thermal stress and preventing excessive heat build-up , the diodes contribute to extending the overall durability and lifespan of the panel. When connected in series, the bypass diodes ensure that shading on one panel does not significantly impact the performance of the entire solar array. Built for extreme durability MCS certification guarantees that this solar panel is designed for durability. It has undergone rigorous weather testing and is built to withstand harsh environmental conditions. The panel is resistant to sand, dust, acid, alkali, and salt mist corrosion , making it suitable for installations in extreme climates. Additionally, its anti-PID (Potential Induced Degradation) and hail shock resistance further enhance its longevity and reliability. Long-term reliability & warranty protection For long-term peace of mind, the FMCS-350M comes with a 5-year quality and performance guarantee for vehicle/boat installations and 10-year for roof installations , along with a 25-year linear power output warranty , ensuring reliable and efficient energy generation for decades. The FMCS-350M semi-flexible solar panel is the perfect combination of innovation and efficiency, offering superior performance in any environment. Whether for residential, commercial, or industrial applications, this high-efficiency panel provides a reliable, sustainable energy solution for years to come. The panel is fitted with 0.3m of 4.0mm² solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4.0mm² extension cable . The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller. Click on the Details and Specifications tab for more information about this product.
Solar panel specific ations: - Peak power: 350W - Maximum power voltage: 27.47V - Maximum power current: 12.75A - Open circuit voltage: 33.17V - Short circuit current: 13.70A - Protection: IP68 - Dimensions: 1571 x 1137 x 3.4 mm - Weight: 7.4 kg - 2 x 0.3m of 4.0mm² solar cable attached This product is covered by a 5 year workmanship warranty for vehicle/boat installations and a 10 year warranty for roof installations provided by Photonic Universe. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions .

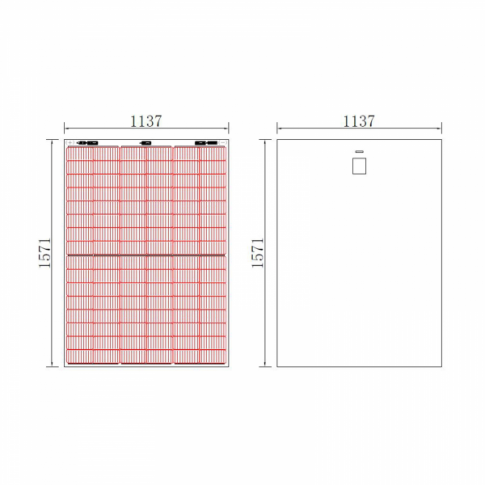

The following documents are available to download: Technical Drawing of the 350W MCS certified semi-flexible solar panel (FMCS-350M) Datasheet for the 350W MCS certified semi-flexible solar panel (FMCS-350M)
