3kW Complete Off-grid Solar Power System with 3 x 430W Sharp solar panels, 3kW hybrid inverter and 2 x 200Ah lithium batteries - view 1
1 / 5
Product Information

Includes 3 x 430W Sharp solar panels, a 3000W 24V hybrid inverter with integrated 60A MPPT solar charge controller and 60A mains battery charger, 2 x 200Ah Lithium batteries and connection cables

Key features

  • Peak power: 430W Maximum power voltage: 32.73V Maximum power current: 13.14A Open circuit voltage: 39.09V Short circuit current: 14.01A Power tolerance: 0/+5% Dimensions: 1722 x 1134 x 30 mm Weight: 20.7 kg Mounting holes for ease of installation 2 x 1.25m of high-quality single core solar cable Male and female MC4 waterproof connectors Nominal battery voltage: 24V Continuous power output: 3000W / 3000VA Surge power: 6000VA Output voltage: 230V AC Output frequency: 50Hz /60 Hz Output waveform: Pure sine wave Maximum solar input power: 1500W Maximum open circuit solar input voltage: 145V Maximum solar charging current: 60A MPPT operating voltage range: 30V – 115V Maximum mains AC charging current: 60A Maximum combined charging current: 120A Peak efficiency: 93% Operating temperature: -10C to 50C
  • Supplied with a PC connection cable and PC software CD Terminals for mains power connection Size: 44 x 30 x 10 cm Weight: 9.5 kg Nominal voltage: 12.8V Nominal capacity: 200Ah Nominal energy: 2560Wh Life cycle: 6000 cycles @80% DoD, at 25 deg C Recommended charge voltage: 14.6V Maximum charge current: 100A Recommended charge current: 20A Maximum discharge current: 100A Operating charge temperature: from 0 deg C to +45 deg C Operating discharge temperature: from -20 deg C to +55 deg C Humidity: 5-95% (RH) Altitude: <4000m Size: 502 x 186 x 243 mm Weight: 23kg

Specifications

Range
Off-grid solar kits
Size
44 x 30 x 10 cm
Weight
20.7 kg
Voltage
24V, 73V, 09V, 230V, 145V, 30V, 115V, 8V, 6V
Wattage
430W, 3000W, 1500W
Amps
60A, 13.14A, 14.01A, 120A, 100A, 20A
Cable core size
30 mm
Controller type
MPPT
Delivery estimate
5-7 working days
Free delivery
Yes
Inverter type
Off-grid
Altitude
<4000m
Continuous Power Output
3000W / 3000VA
Dimensions
1722 x 1134 x 30 mm
Humidity
5-95% (RH)
Life Cycle
6000 cycles @80% DoD, at 25 deg C
Maximum Charge Current
100A
Maximum Combined Charging Current
120A
Maximum Discharge Current
100A
Maximum Mains Ac Charging Current
60A
Maximum Open Circuit Solar Input Voltage
145V
Maximum Power Current
13.14A
Maximum Power Voltage
32.73V
Maximum Solar Charging Current
60A
Maximum Solar Input Power
1500W
Mppt Operating Voltage Range
30V – 115V
Nominal Battery Voltage
24V
Nominal Capacity
200Ah
Nominal Energy
2560Wh
Nominal Voltage
12.8V
Open Circuit Voltage
39.09V
Operating Charge Temperature
from 0 deg C to +45 deg C
Operating Discharge Temperature
from -20 deg C to +55 deg C
Operating Temperature
-10C to 50C
Output Frequency
50Hz /60 Hz
Output Voltage
230V AC
Output Waveform
Pure sine wave
Peak Efficiency
93%
Peak Power
430W
Please Note
due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter and batteries, and therefore delivered in a separate package.
Power Tolerance
0/+5%
Product family
Solar Kits
Recommended Charge Current
20A
Recommended Charge Voltage
14.6V
Short Circuit Current
14.01A
Surge Power
6000VA

Overview

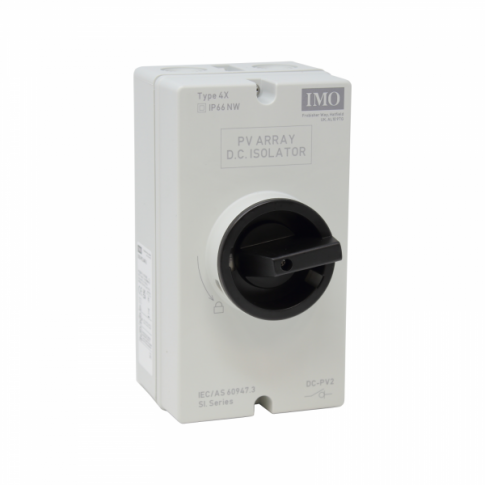

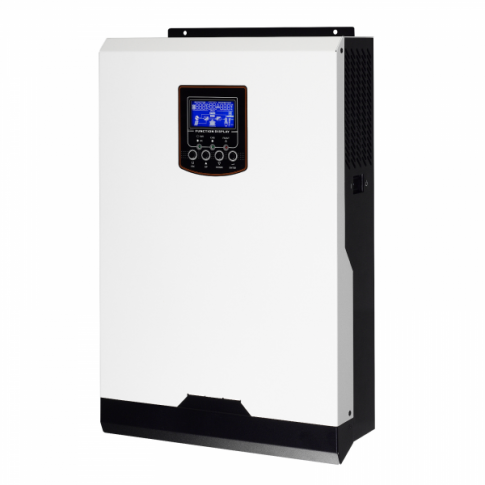

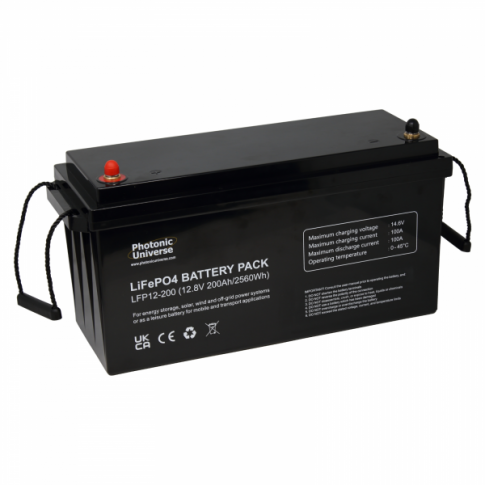

This Photonic Universe 1.3kW 24V Complete Off-grid Solar Power System is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small/medium household or office appliances such as LED lighting, TV, radio, computer, printer or a fridge. This may vary significantly according to the location and season. This complete off-grid kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including three monocrystalline Sharp solar panels and a state-of-the-art Iconica hybrid power inverter - an intelligent combination of a high efficiency MPPT solar charge controller, pure sine wave inverter and smart mains battery charger in one single unit. Kit includes: - 3 x 430W Sharp NU-JC430B Full Black Monocrystalline Solar panels with high-efficiency TOPCon cells - Iconica Hybrid 3000W 24V pure sine wave inverter - 2 x 200Ah 12V Photonic Universe Lithium leisure battery - 120A fuse or circuit breaker - A pair of 10m 6mm² solar extension cables with MC4 connectors - 1m of 35mm² red tinned copper battery cable - 1m of 35mm² black tinned copper battery cable - IMO 16A DC Isolator Switch - 2 Pole - Battery linking cable - Loose ring terminals 3 x 430W Sharp NU-JC430B Full Black Monocrystalline Solar panel: The system includes three Sharp NU-JC430B Full Black Monocrystalline Solar Panels . The panels features advanced TOPCon cell technology for excellent performance in high temperatures, low light, and shaded conditions. Their IP68-rated construction is resistant to PID, salt mist, ammonia, snow, dust, and sand, ensuring dependable operation even in the harshest environments. Backed by up to 25 years product warranty (EU) and 30 years performance warranty , these 3000W 24V Iconica Hybrid Inverter: This inverter intelligently combines the functions of a 3000W pure sine wave inverter, 60A MPPT solar charge controller and a 60A smart battery charger in one single unit: 1. 3000W 24V Pure sine wave inverter: Converts DC current from the solar panels into 230V AC mains electricity, to run various household appliances such as a TV, laptop, lighting, fans etc. Able to generate 3000VA of continuous power with a strong peak power handling capability of up to 6000VA (to start appliances with electric motors). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances. 2. Inbuilt 60A MPPT solar charge controller: The high efficiency MPPT controller regulates the input from the solar panels to the batteries or to a load, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. The controller operates at up to 98% efficiency to extract the maximum possible power from the solar array. 3. Enhanced 60A Smart battery charger: Designed to enable safe and efficient unattended charging of the batteries from a mains power source or generator, with full overcharge protection and multiple charging stages. Additional features: This model also features an Uninterrupted Power Supply (UPS), and can accept input from the solar panels, mains power/ a generator and the batteries - either from a single or combination of input sources. The inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, and can also be connected to a Wi-Fi connection kit (purchased separately) to unlock access to email status updates for the inverter, remote system monitoring from any location and much more. 2 x Photonic Universe 200Ah Lithium Battery: The LFP12-200 is a high-performance 200Ah 12V Lithium Iron Phosphate (LiFePO4) battery , offering exceptional reliability, safety, and long service life . Unlike traditional lead-acid batteries, it features a built-in Battery Management System (BMS) that actively monitors and protects the battery for safe and efficient operation. Additionally, the LFP12-200 includes Bluetooth connectivity via the XiaoXiangElectric app (available on IOS and Android ), allowing users to monitor and manage battery performance in real time Additional items: This kit also includes 1m positive and negative 35mm² tinned copper battery cables with loose ring terminals for connecting the inverter to the batteries, a 120A fuse or circuit breaker for use between the hybrid inverter and the batteries, 10m solar extension cable with MC4 connectors to connect to the existing 1.25m of solar cable fitted to the solar panels , DC isolator switch for use between the hybrid inverter and the solar panels, and battery linking cable to connect the batteries together. Click on the Details and Specifications tab for more information about this kit.

Specifications

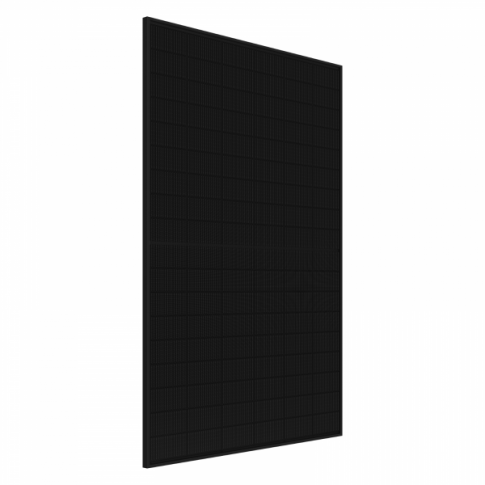

Solar panel specifications (per solar panel): - Peak power: 430W - Maximum power voltage: 32.73V - Maximum power current: 13.14A - Open circuit voltage: 39.09V - Short circuit current: 14.01A - Power tolerance: 0/+5% - Dimensions: 1722 x 1134 x 30 mm - Weight: 20.7 kg - Mounting holes for ease of installation - 2 x 1.25m of high-quality single core solar cable - Male and female MC4 waterproof connectors Hybrid inverter specifications: - Nominal battery voltage: 24V - Continuous power output: 3000W / 3000VA - Surge power: 6000VA - Output voltage: 230V AC - Output frequency: 50Hz /60 Hz - Output waveform: Pure sine wave - Maximum solar input power: 1500W - Maximum open circuit solar input voltage: 145V - Maximum solar charging current: 60A - MPPT operating voltage range: 30V – 115V - Maximum mains AC charging current: 60A - Maximum combined charging current: 120A - Peak efficiency: 93% - Operating temperature: -10C to 50C - Supplied with a PC connection cable and PC software CD - Terminals for mains power connection - Size: 44 x 30 x 10 cm - Weight: 9.5 kg Battery specifications (per battery): - Nominal voltage: 12.8V - Nominal capacity: 200Ah - Nominal energy: 2560Wh - Life cycle: 6000 cycles @80% DoD, at 25 deg C - Recommended charge voltage: 14.6V - Maximum charge current: 100A - Recommended charge current: 20A - Maximum discharge current: 100A - Operating charge temperature: from 0 deg C to +45 deg C - Operating discharge temperature: from -20 deg C to +55 deg C - Humidity: 5-95% (RH) - Altitude: <4000m - Size: 502 x 186 x 243 mm - Weight: 23kg Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter and batteries, and therefore delivered in a separate package. The solar panel is covered by up to a 25-year product guarantee provided by Sharp Electronics. The batteries are covered by a 5 year repair or replacement warranty provided by Photonic Universe. The hybrid inverter is covered by a 1 year manufacturer warranty. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). For more information please refer to our Terms and Conditions . In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%. For installation advice, please click on the Installation tab.

SKUKIT2-3K
