3kW Zero-Transfer Uninterrupted Power Supply (UPS) System with 4.8kWh energy storage - view 1
1 / 3
Product Information

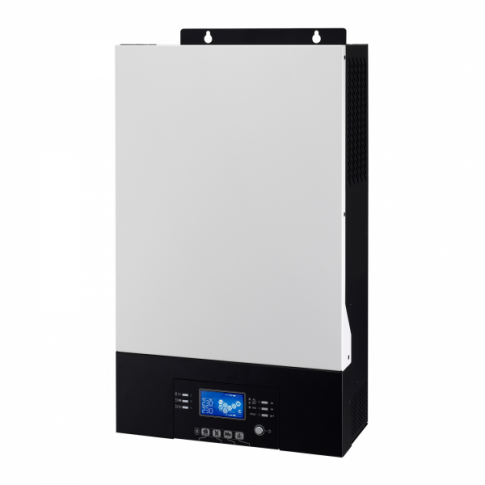

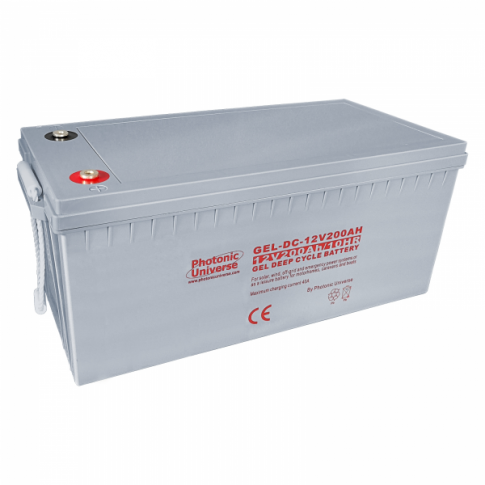

UPS battery back-up system for applications requiring a constant, uninterrupted power supply. Includes a 3000W 24V hybrid inverter with zero-transfer time, 2 x 200Ah gel deep-cycle batteries and connection cables.

Key features

  • Nominal battery voltage: 24V Continuous power output: 3000W/3000VA (220-240V AC) Surge power: 6000VA Output frequency: 50Hz - 60Hz Output waveform: Pure sine wave Maximum solar input power: 1500W Maximum open circuit solar input voltage: 145V (open circuit) MPPT operating solar voltage: 30 - 115 V Maximum solar charging current: 60A Maximum mains AC charging current: 60A Maximum combined charging current: 120A Peak efficiency: 93% Solar / AC charger max efficiency: 98% Operating temperature: 0 deg C to 55 deg C
  • Supplied with USB drive, PC connection cable and PC software CD Size: 52.5 x 30.3 x 14 cm Weight: 13 kg Nominal voltage: 12V Nominal capacity: 200Ah (10h rate) / 205Ah (20h rate) Maximum charging current: 40A Self-discharging rate: <1% per month Cycle lifetime at 30% D.O.D.: 1200-1300 Pressure control: safety valve installed Terminal type: F24 (bolts and washers included) Operating temperature: from -10C to +50C Size: 523 x 239 x 243 mm Weight: 61.5 kg

Specifications

Range
UPS Systems
Size
52.5 x 30.3 x 14 cm
Weight
13 kg
Voltage
24V, 240V, 145V, 12V
Wattage
3000W, 1500W
Amps
60A, 120A, 40A
Battery type
Gel
Cable core size
243 mm
Controller type
MPPT
Delivery estimate
5-7 working days
Free delivery
Yes
Inverter type
UPS
Continuous Power Output
3000W/3000VA (220-240V AC)
Cycle Lifetime At 30 D O D
1200-1300
Maximum Charging Current
40A
Maximum Combined Charging Current
120A
Maximum Mains Ac Charging Current
60A
Maximum Open Circuit Solar Input Voltage
145V (open circuit)
Maximum Solar Charging Current
60A
Maximum Solar Input Power
1500W
Mppt Operating Solar Voltage
30 - 115 V
Nominal Battery Voltage
24V
Nominal Capacity
200Ah (10h rate) / 205Ah (20h rate)
Nominal Voltage
12V
Operating Temperature
0 deg C to 55 deg C
Output Frequency
50Hz - 60Hz
Output Waveform
Pure sine wave
Peak Efficiency
93%
Please Note
due to our warehouse arrangements, the accessories may be shipped from a different warehouse to the hybrid inverter and batteries, and therefore delivered in a separate package.
Pressure Control
safety valve installed
Product family
Inverters & AC Power
Self Discharging Rate
<1% per month
Solar Ac Charger Max Efficiency
98%
Surge Power
6000VA
Terminal Type
F24 (bolts and washers included)

Overview

This Photonic Universe Uninterrupted Power Supply (UPS) system is suitable for both mains-powered and off-grid applications where a stable and reliable source of AC power is required. Ideal for running household appliances, IT and computer rooms, servers, commercial or other large electronic equipment. In a mains-powered setup, the system ensures that the AC appliances are not interrupted even if the mains electricity is unstable , intermittent or the power is suddenly cut off. While the mains power is available, the system links it to the AC output to power connected appliances whilst simultaneously charging the batteries, or keeping them topped up. If the mains power is suddenly cut off, the system instantly transfers the power input to the batteries and starts drawing energy from them so that the load work is not interrupted. When the mains AC input power becomes available again, the system transfers the input to mains AC power. Zero transfer technology allows for instant switching from mains to battery backup power, without the typical delay of 10-20ms. This UPS is ideal for sensitive electronics where a consistent power supply is required, such as computers, servers, equipment in datacentres and other IT equipment. For off-grid systems with a generator, this UPS system can allow for continual power even when the generator is turned off . This allows users to achieve significant savings of fuel costs by only running the generator periodically - at the optimal power levels to charge the batteries. The system can also be used for portable power applications , i.e. when the batteries are charged in a location with mains electricity, and the system is then transported to a different off-grid location to provide power on demand on a temporary basis. This UPS system also supports solar power input with no additional charge control equipment required. Users can simply connect a suitable solar array to the inverter to start charging from solar power to save on electricity bills for mains connected systems, or in order to run a generator less frequently for off-grid systems. The system can be easily expanded to generate up to 27kW of continuous power, by connecting 9 inverters in parallel (additional parallel kits required, one per inverter). The external battery bank allows for easy expansion or replacement , as well as straight-forward installation in irregular locations. This package includes the main UPS unit , 2 x 200Ah gel deep-cycle batteries , 1m tinned copper battery cables , battery linking cables , a thermal over-current circuit breaker and loose ring terminals for crimping. Please note: the inverter uses predictive cooling logic to activate the fans, and is not suitable for installing in locations where silence is required. Click on the Details and Specifications tab for more information about this kit.

Specifications

UPS specifications: - Nominal battery voltage: 24V - Continuous power output: 3000W/3000VA (220-240V AC) - Surge power: 6000VA - Output frequency: 50Hz - 60Hz - Output waveform: Pure sine wave - Maximum solar input power: 1500W - Maximum open circuit solar input voltage: 145V (open circuit) - MPPT operating solar voltage: 30 - 115 V - Maximum solar charging current: 60A - Maximum mains AC charging current: 60A - Maximum combined charging current: 120A - Peak efficiency: 93% - Solar / AC charger max efficiency: 98% - Operating temperature: 0 deg C to 55 deg C - Supplied with USB drive, PC connection cable and PC software CD - Size: 52.5 x 30.3 x 14 cm - Weight: 13 kg Battery specifications (per battery): - Nominal voltage: 12V - Nominal capacity: 200Ah (10h rate) / 205Ah (20h rate) - Maximum charging current: 40A - Self-discharging rate: <1% per month - Cycle lifetime at 30% D.O.D.: 1200-1300 - Pressure control: safety valve installed - Terminal type: F24 (bolts and washers included) - Operating temperature: from -10C to +50C - Size: 523 x 239 x 243 mm - Weight: 61.5 kg Please note: due to our warehouse arrangements, the accessories may be shipped from a different warehouse to the hybrid inverter and batteries, and therefore delivered in a separate package. The batteries are covered by a 1 year repair or replacement warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The hybrid inverter is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions . For installation advice, please click on the Installation tab.

SKUUPS-ZT3K-24
