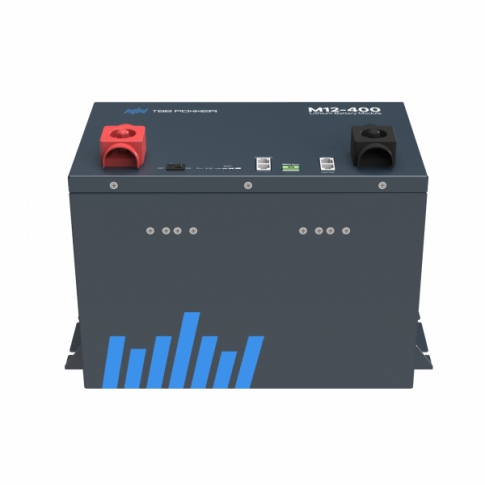

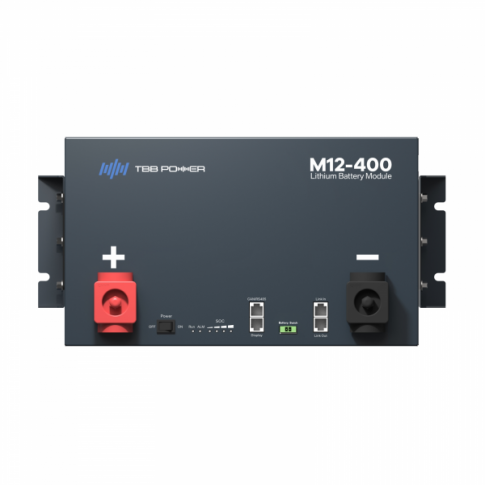

400Ah 12V TBB Power Lithium Iron Phosphate Battery with Heating & 300A BMS for Leisure, Solar, Wind and Off-grid applications - view 1
1 / 3
Product Information

400Ah 12V Lithium Iron Phosphate Battery with Heating & 300A BMS for various applications.

Key features

Nominal voltage: 12.8V Nominal capacity: 400Ah Nominal energy: 5.12kWh Life cycle: 3000 cycles @100% DoD, at 25 deg C Recommended charge voltage: 14.2V Maximum charge current: 200A Recommended charge current: 100A Maximum discharge current: 200A (Continuous)/ 300A (10 minutes) Operating charge temperature: from 2 deg C to +60 deg C Operating discharge temperature: from -30 deg C to +60 deg C Humidity: 10-90% (RH) Size: 462 x 237 x 326.5 mm Weight: 42.5kg

Specifications

Range
LiFePO4 Batteries
Size
462 x 237 x 326.5 mm
Weight
42.5kg
Voltage
12V, 8V, 2V
Amps
300A, 200A, 100A
Battery type
LiFePO4
Cable core size
326.5 mm
Delivery estimate
5-7 working days
Free delivery
Yes
Humidity
10-90% (RH)
Life Cycle
3000 cycles @100% DoD, at 25 deg C
Maximum Charge Current
200A
Maximum Discharge Current
200A (Continuous)/ 300A (10 minutes)
Nominal Capacity
400Ah
Nominal Energy
5.12kWh
Nominal Voltage
12.8V
Operating Charge Temperature
from 2 deg C to +60 deg C
Operating Discharge Temperature
from -30 deg C to +60 deg C
Product family
Batteries & Storage
Recommended Charge Current
100A
Recommended Charge Voltage
14.2V

Overview

What is the TBB-M12400? The TBB-M12400 is a high-performance 400Ah 12V Lithium Iron Phosphate (LiFePOв‚„) battery, designed by TBB Mobile for safe, efficient, and long-lasting energy storage. Featuring a built-in 300A BMS, low-temperature heating function, parallel expandability, and advanced control options, it’s an ideal solution for off-grid power , marine applications , and vehicle energy systems . With its intelligent Battery Management System (BMS), the TBB-M12400 actively monitors, protects, and optimises battery performance, ensuring reliable operation and an extended service life. Key Benefits of the TBB-M12400 - Long Cycle Life : Provides up to 3,000 cycles at 25 deg C, 0.5C charge/discharge rate, vastly outlasting traditional lead-acid batteries. - High-Performance BMS : Offers full protection from: - Overcharging & over-discharging - Over-current & short circuits - High & low temperature extremes - Cell voltage balancing & cycle life optimisation - High Discharge Capability : Supports up to 300A discharge for high-power loads. - Parallel Expandability : Connect up to 8 units in parallel for large-scale energy storage. - Automatic Wake-Up Function : In shutdown mode, the battery auto-activates when an external charging voltage >14V is applied, allowing charging without discharging. - Optional TBB-MCK Display Panel : Enables system control and live monitoring of battery voltage, current, SOC, and system status. - Low Power Consumption : - <50mA in standby mode when powered on - <0.1mA ultra-low standby draw when powered off - Dry Contact Power-Off Function : The integrated dry contact port allows the battery to be completely powered down , minimising idle energy use and ideal for long-term storage or emergency power isolation. - Bluetooth Monitoring (Optional) : Compatible with the TBB-DTU Bluetooth module, enabling wireless monitoring of key battery metrics such as SOC, voltage, current, and alarms through the TBB Battery mobile app ( Google Play or Apple App store). - Wide Operating Temperature : Reliable performance from -30 deg C to +60 deg C. - Integrated Low-Temperature Heating : Automatically warms the battery from -20 deg C to +5 deg C (approx. 90 minutes) using external power, ensuring safe operation in cold environments. - Compact & Lightweight : High energy density reduces weight and saves valuable installation space compared to bulky lead-acid units. Advanced Protection Features The TBB-M12400 integrates robust multi-layer safety systems for maximum reliability: - Short Circuit Protection - Over-Current Protection - Battery High/Low Voltage Protection - Individual Cell High/Low Voltage Protection - Charge/Discharge Temperature Protection - BMS Circuit Over-Temperature Protection - External Input Overvoltage Protection Whether you're powering a marine vessel, off-grid cabin, or mobile workspace, the TBB-M12400 delivers superior energy storage with safety, intelligence, and flexibility built in. For more details and technical specifications, click on the Details and Specifications tab.

Specifications

Battery specifications: - Nominal voltage: 12.8V - Nominal capacity: 400Ah - Nominal energy: 5.12kWh - Life cycle: 3000 cycles @100% DoD, at 25 deg C - Recommended charge voltage: 14.2V - Maximum charge current: 200A - Recommended charge current: 100A - Maximum discharge current: 200A (Continuous)/ 300A (10 minutes) - Operating charge temperature: from 2 deg C to +60 deg C - Operating discharge temperature: from -30 deg C to +60 deg C - Humidity: 10-90% (RH) - Size: 462 x 237 x 326.5 mm - Weight: 42.5kg This product is covered by a 5 year warranty . For more information please refer to our Terms and Conditions .

SKUTBB-M12400
