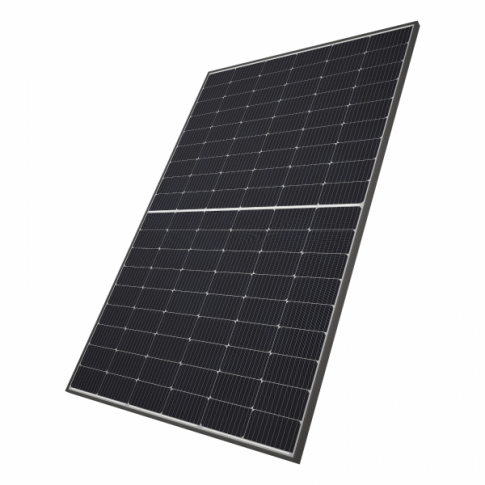

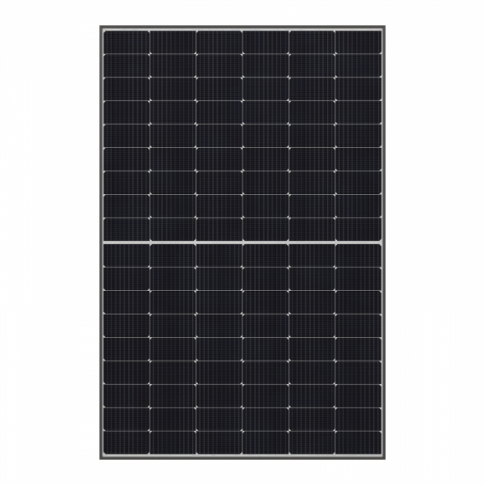

410W Sharp NU-JC410B Black Frame Monocrystalline Solar panel with high-efficiency PERC cells - view 1
1 / 4
Product Information

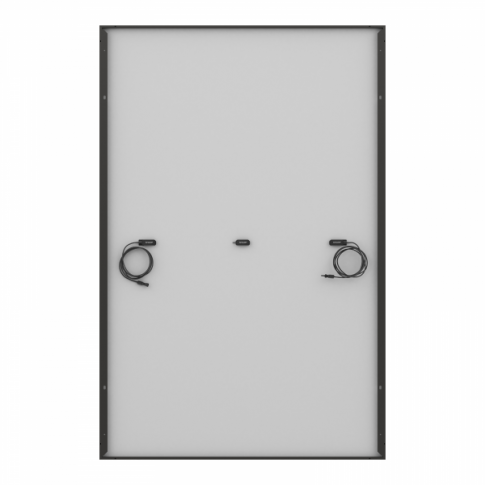

Premium Black 410W Sharp NU-JC410B solar module with 1.25m of special solar cable and MC4 compatible connectors. Suitable for grid-tie, hybrid and off-grid applications.

Key features

Peak power: 410W Maximum power voltage: 31.3V Maximum power current: 13.1A Open circuit voltage: 37.79V Short circuit current: 13.81A Power tolerance: 0/+5% Dimensions: 1722 x 1134 x 30 mm Weight: 21.8 kg Mounting holes for ease of installation 2 x 1.25m of high-quality single core solar cable Male and female MC4 waterproof connectors

Specifications

Range
MCS certified solar panels
Weight
21.8 kg
Voltage
3V, 79V
Wattage
410W
Amps
13.1A, 13.81A
Cable core size
30 mm
Delivery estimate
5-7 working days
Free delivery
Yes
Panel type
MCS certified
Dimensions
1722 x 1134 x 30 mm
Maximum Power Current
13.1A
Maximum Power Voltage
31.3V
Open Circuit Voltage
37.79V
Peak Power
410W
Power Tolerance
0/+5%
Product family
Solar Panels
Short Circuit Current
13.81A

Overview

Photonic Universe are proud to present this high quality black frame 410W solar panel from leading solar panel manufacturer Sharp , which has over 60 years of experience with solar technology and over 50 million solar panels installed all over the world. This MCS certified panel is perfect for a wide variety of applications, from grid-tie household systems to off-grid installations where mains power is limited or unavailable such as boats, caravans, campervans, cabins or glamping huts. These high-power panels are ideal for large systems where the time and expense of fitting a high wattage array needs to be minimised. High efficiency solar cells use PERC technology with 10 busbars to extract more power from a smaller surface area, increasing the output of the panel without increasing the size. The half-cut cell construction decreases internal losses, reduces risk of hotspots and improves performance in shaded conditions. The robust design of the panel is IP68 (waterproof) rated, and tested for resistance against PID, salt mist, ammonia, heavy snow, dust and sand. This thorough testing ensures a long service life even in harsh marine or wilderness conditions . A pair of male / female MC4 connectors are crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads or your existing system. With a 25-year product guarantee for EU countries (12-year globally), and up to a 25-year power output guarantee, you can be confident in the quality, durability and longevity of this premium solar panel. UK mainland deliveries only. For non-mainland addresses (including the Scottish Highlands) please contact us for a delivery quote . Click on the Details and Specifications tab for more information.

Specifications

Specifications: - Peak power: 410W - Maximum power voltage: 31.3V - Maximum power current: 13.1A - Open circuit voltage: 37.79V - Short circuit current: 13.81A - Power tolerance: 0/+5% - Dimensions: 1722 x 1134 x 30 mm - Weight: 21.8 kg - Mounting holes for ease of installation - 2 x 1.25m of high-quality single core solar cable - Male and female MC4 waterproof connectors The product is covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 98% of nominal power in the first year after purchase and less than 0.54% degradation of nominal power each year after until 25 years after purchase, for a minimum of 85%. Full warranty documentation can be found in the Documents tab. For more information please refer to our Terms and Conditions .

SKUSRP-410B
