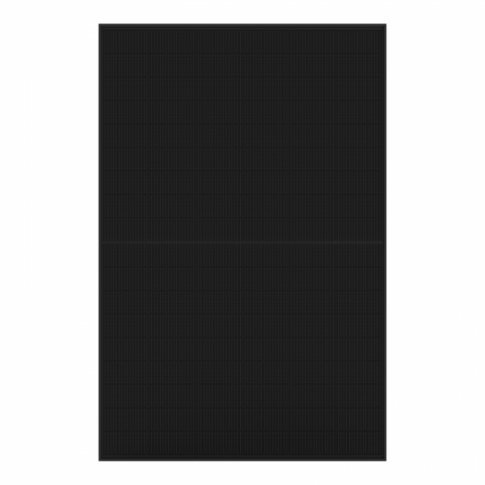

430W Sharp NU-JC430B Full Black Monocrystalline Solar panel with high-efficiency TOPCon cells - view 1
1 / 4
Product Information

Premium Black 430W Sharp NU-JC430B solar module with 1.25m of special solar cable and MC4 compatible connectors. Suitable for grid-tie, hybrid and off-grid applications.

Key features

Peak power: 430W Maximum power voltage: 32.73V Maximum power current: 13.14A Open circuit voltage: 39.09V Short circuit current: 14.01A Power tolerance: 0/+5% Dimensions: 1722 x 1134 x 30 mm Weight: 20.7 kg Mounting holes for ease of installation 2 x 1.25m of high-quality single core solar cable Male and female MC4 waterproof connectors

Specifications

Range
MCS certified solar panels
Weight
20.7 kg
Voltage
73V, 09V
Wattage
430W
Amps
13.14A, 14.01A
Cable core size
30 mm
Delivery estimate
5-7 working days
Free delivery
Yes
Panel type
MCS certified
Dimensions
1722 x 1134 x 30 mm
Maximum Power Current
13.14A
Maximum Power Voltage
32.73V
Open Circuit Voltage
39.09V
Peak Power
430W
Power Tolerance
0/+5%
Product family
Solar Panels
Short Circuit Current
14.01A

Overview

Photonic Universe are proud to present this high quality full black 430W solar panel from leading solar panel manufacturer Sharp , which has over 60 years of experience with solar technology and over 50 million solar panels installed all over the world. High efficient TOPCon (Tunnel Oxide Passivated Contact) solar cells offer significant benefits, including higher efficiency due to improved passivation and reduced recombination losses, better performance at high temperatures, and enhanced long-term stability. The half-cut cell construction decreases internal losses, reduces risk of hotspots and improves performance in shaded conditions. This MCS certified panel is perfect for a wide variety of applications, from grid-tie household systems to off-grid installations where mains power is limited or unavailable such as boats, caravans, campervans, cabins or glamping huts. These high-power panels are ideal for large systems where the time and expense of fitting a high wattage array needs to be minimised. The robust design of the panel is IP68 (waterproof) rated, and tested for resistance against PID, salt mist, ammonia, heavy snow, dust and sand. This thorough testing ensures a long service life even in harsh marine or wilderness conditions . A pair of male / female MC4 connectors are crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads or your existing system. With up to a 25-year product guarantee for EU countries (12-year globally), and up to a 30-year power output guarantee, you can be confident in the quality, durability and longevity of this premium solar panel. UK mainland deliveries only. For non-mainland addresses (including the Scottish Highlands) please contact us for a delivery quote . Click on the Details and Specifications tab for more information.

Specifications

Specifications: - Peak power: 430W - Maximum power voltage: 32.73V - Maximum power current: 13.14A - Open circuit voltage: 39.09V - Short circuit current: 14.01A - Power tolerance: 0/+5% - Dimensions: 1722 x 1134 x 30 mm - Weight: 20.7 kg - Mounting holes for ease of installation - 2 x 1.25m of high-quality single core solar cable - Male and female MC4 waterproof connectors The product is covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%. Full warranty documentation can be found in the Documents tab. For more information please refer to our Terms and Conditions .

SKUSRP-430B
