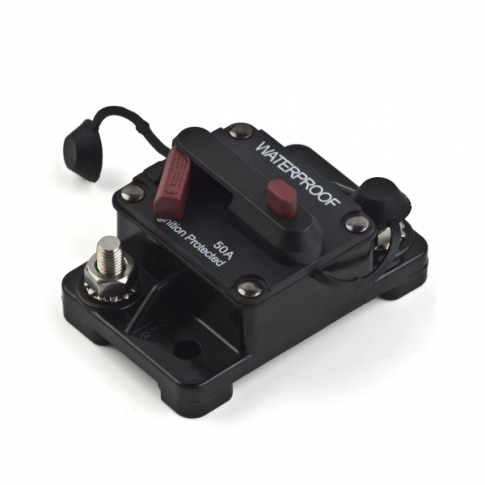

50A 12V/24V/48V Automatic over-current DC circuit breaker / switch - view 1
1 / 3
Product Information

Resettable 50A circuit breaker / switch for DC systems to protect against over-current.

Key features

  • Rating: 50A Type: Thermal overcurrent protection device Material: Thermal plastic ( UL rated 94V-0) Operating temperature: -32C to 82C Storage temperature: -34C to 149C Terminals size: M6 Enclosure: IP67 Size : 74 x 48 x 37 mm Weight : 110g Waterproof rating: IP67 International standard ratings (S.A.E
  • J1625, J1171, UL1500)

Specifications

Range
DC Circuit Breakers
Material
Thermal plastic ( UL rated 94V-0)
Size
74 x 48 x 37 mm
Weight
110g
Voltage
12V, 24V, 48V, 94V
Amps
50A
Cable core size
37 mm
Delivery estimate
5-7 working days
Free delivery
Yes
Enclosure
IP67
Operating Temperature
-32C to 82C
Product family
Protection & Distribution
Rating
50A
Storage Temperature
-34C to 149C
Terminals Size
M6
Type
Thermal overcurrent protection device
Waterproof Rating
IP67

Overview

This 50A circuit breaker combines functions of a resettable 50A fuse and On/Off switch in one unit. It is ideal for any DC system that requires both over-current protection and manual isolation of the circuit. The breaker is suitable for a wide range of DC system voltages from 12V to 48V. Like any fuse, this circuit breaker is designed to protect the system from over-current as a result of high power draw, short-circuits, wiring mistakes, equipment faults or any other high current event. The circuit breaker is resettable which makes it a superior alternative to fuses which require replacement when blown. Additionally, the breaker has a manual-break option which allows it to be used as an isolator On/Off switch for simple disconnection and reconnection of the system. The circuit breaker is made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated). The breaker is also water resistant (IP67 rated) and ignition protected (meets international standards S.A.E. J1625, J1171, UL1500). This product is suitable for a wide range of DC applications including: - Connecting solar or wind charge controllers to batteries; - Between off-grid inverter DC input and batteries; - DC power distribution or charging circuits; - Other DC automotive and marine applications. Click on the Details and Specifications tab for more information.

Specifications

Circuit breaker specifications: - Rating: 50A - Type: Thermal overcurrent protection device - Material: Thermal plastic ( UL rated 94V-0) - Operating temperature: -32C to 82C - Storage temperature: -34C to 149C - Terminals size: M6 - Enclosure: IP67 - Size : 74 x 48 x 37 mm - Weight : 110g - Waterproof rating: IP67 - International standard ratings (S.A.E. J1625, J1171, UL1500)

SKUCB50
