5kW Complete Off-grid Solar Power System with 2.6kW (6 x 430W) Sharp solar panels, 5kW hybrid inverter and 5kWh wall-mounted lithium battery - view 1
1 / 5
Product Information

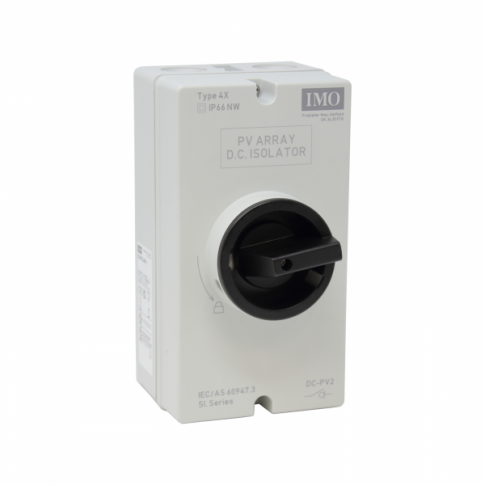

Includes 6 x 430W Sharp solar panels, a 5000W 48V hybrid inverter with integrated 80A MPPT solar charge controller and 60A mains battery charger, 5kWh wall-mounted Lithium battery, connection cables, switches and terminals

Key features

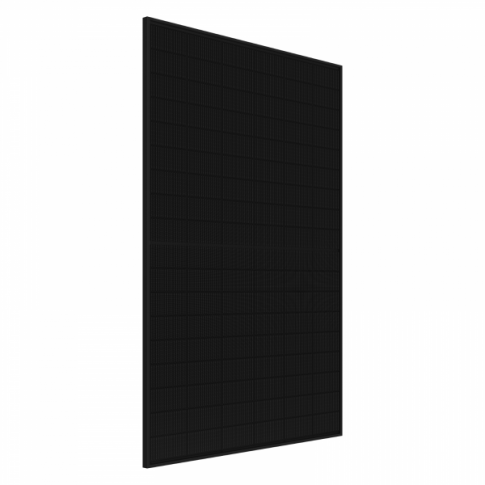

  • Peak power: 430W Maximum power voltage: 32.73V Maximum power current: 13.14A Open circuit voltage: 39.09V Short circuit current: 14.01A Power tolerance: 0/+5% Dimensions: 1722 x 1134 x 30 mm Weight: 20.7 kg Mounting holes for ease of installation 2 x 1.25m of high-quality single core solar cable Male and female MC4 waterproof connectors Nominal battery voltage: 48V Continuous power output: 5000W/5000VA (220-240V AC) Surge power: 10000VA Output frequency: 50Hz Output waveform: Pure sine wave Maximum solar input power: 4000W Maximum open circuit solar input voltage: 500V (open circuit) PV Start up voltage: 150V +/- 10V MPPT solar operating voltage: 120V - 450V Maximum solar charging current: 80A Maximum mains AC charging current: 60A Maximum combined charging current: 80A Peak efficiency: 93% Solar / AC charger max efficiency: 98% Operating temperature: -10 deg C to 50 deg C

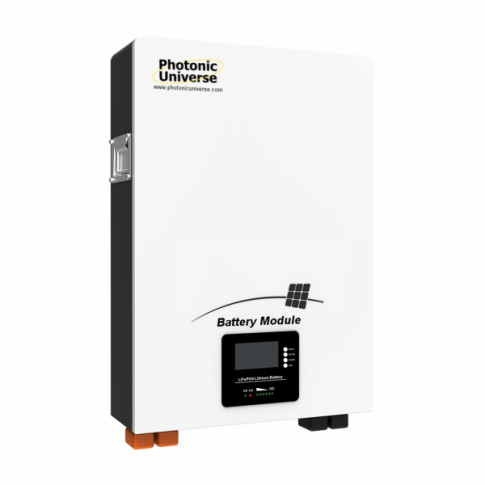

  • Supplied with USB drive, PC connection cable and PC software CD Size: 44 x 30 x 11.5 cm Weight: 10 kg Nominal voltage: 51.2V Nominal capacity: 100Ah Depth of discharge: 95% Life cycle: 6000 cycles @95% DoD, at 25 deg C Recommended charge voltage: 58.4V Maximum charge current: 100A Recommended charge current: 50A Maximum discharge current: 100A Recommended discharge current: 50A Operating charge temperature: from 0 deg C to +45 deg C Operating discharge temperature: from -10 deg C to +45 deg C Humidity: 5-95% (RH) Altitude: <4000m Communication ports: RS485/RS232/CAN Size: 590 x 442 x 177 mm Weight: 45kg

Specifications

Range
Off-grid solar kits
Size
44 x 30 x 11.5 cm
Weight
20.7 kg
Voltage
48V, 73V, 09V, 240V, 500V, 150V, 10V, 120V, 450V, 2V, 4V
Wattage
430W, 5000W, 4000W
Amps
80A, 60A, 13.14A, 14.01A, 100A, 50A
Cable core size
30 mm
Controller type
MPPT
Delivery estimate
5-7 working days
Free delivery
Yes
Inverter type
Off-grid
Altitude
<4000m
Communication Ports
RS485/RS232/CAN
Continuous Power Output
5000W/5000VA (220-240V AC)
Depth Of Discharge
95%
Dimensions
1722 x 1134 x 30 mm
Humidity
5-95% (RH)
Life Cycle
6000 cycles @95% DoD, at 25 deg C
Maximum Charge Current
100A
Maximum Combined Charging Current
80A
Maximum Discharge Current
100A
Maximum Mains Ac Charging Current
60A
Maximum Open Circuit Solar Input Voltage
500V (open circuit)
Maximum Power Current
13.14A
Maximum Power Voltage
32.73V
Maximum Solar Charging Current
80A
Maximum Solar Input Power
4000W
Mppt Solar Operating Voltage
120V - 450V
Nominal Battery Voltage
48V
Nominal Capacity
100Ah
Nominal Voltage
51.2V
Open Circuit Voltage
39.09V
Operating Charge Temperature
from 0 deg C to +45 deg C
Operating Discharge Temperature
from -10 deg C to +45 deg C
Operating Temperature
-10 deg C to 50 deg C
Output Frequency
50Hz
Output Waveform
Pure sine wave
Peak Efficiency
93%
Peak Power
430W
Please Note
due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter and batteries, and therefore delivered in a separate package.
Power Tolerance
0/+5%
Product family
Solar Kits
Pv Start Up Voltage
150V +/- 10V
Recommended Charge Current
50A
Recommended Charge Voltage
58.4V
Recommended Discharge Current
50A
Short Circuit Current
14.01A
Solar Ac Charger Max Efficiency
98%
Surge Power
10000VA

Overview

This Photonic Universe 2.6kW 48V Complete Off-grid Solar Power System is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small/medium household or office appliances such as LED lighting, TV, radio, computer, printer or a fridge. This may vary significantly according to the location and season. This complete off-grid kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including six monocrystalline Sharp solar panels and a state-of-the-art Iconica hybrid power inverter - an intelligent combination of a high efficiency MPPT solar charge controller, pure sine wave inverter and smart mains battery charger in one single unit. Kit includes: - 6 x 430W Sharp NU-JC430B Full Black Monocrystalline Solar panels with high-efficiency TOPCon cells - Iconica Hybrid 3000W 24V pure sine wave inverter - 100Ah 48V Photonic Universe wall-mounted lithium leisure battery - 120A fuse or circuit breaker - A pair of 10m 6mm² solar extension cables with MC4 connectors - 1m of 35mm² red tinned copper battery cable - 1m of 35mm² black tinned copper battery cable - IMO 16A DC Isolator Switch - 2 Pole - Battery linking cable - Loose ring terminals 6 x 430W Sharp NU-JC430B Full Black Monocrystalline Solar panel: The system includes six Sharp NU-JC430B Full Black Monocrystalline Solar Panels . The panels features advanced TOPCon cell technology for excellent performance in high temperatures, low light, and shaded conditions. Their IP68-rated construction is resistant to PID, salt mist, ammonia, snow, dust, and sand, ensuring dependable operation even in the harshest environments. Backed by up to 25 years product warranty (EU) and 30 years performance warranty , these 5000W 48V Iconica Hybrid Inverter: This inverter intelligently combines the functions of a 5000W pure sine wave inverter, 80A MPPT solar charge controller and a 60A smart battery charger in one single unit: 1. 5000W 48V Pure sine wave inverter: Converts DC current from the solar panels into 230V AC mains electricity, to run various household appliances such as a TV, laptop, lighting, fans etc. Able to generate 5000VA of continuous power with a strong peak power handling capability of up to 10000VA (to start appliances with electric motors). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances. 2. Inbuilt 80A MPPT solar charge controller: The high efficiency MPPT controller regulates the input from the solar panels to the batteries or to a load, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. The controller operates at up to 98% efficiency to extract the maximum possible power from the solar array. 3. Enhanced 60A Smart battery charger: Designed to enable safe and efficient unattended charging of the batteries from a mains power source or generator, with full overcharge protection and multiple charging stages. Additional features: This model also features an Uninterrupted Power Supply (UPS), and can accept input from the solar panels, mains power/ a generator and the batteries - either from a single or combination of input sources. The inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, and can also be connected to a Wi-Fi connection kit (purchased separately) to unlock access to email status updates for the inverter, remote system monitoring from any location and much more. Photonic Universe 100Ah Wall-Mounted Lithium Battery: The LFP48-100W is a powerful and versatile 100Ah 48V Lithium Iron Phosphate (LiFePO4) battery module designed for wall-mounted energy storage solutions. With its robust capacity and scalable design, it’s perfect for a wide range of applications, including renewable energy systems and backup power. Equipped with an advanced Battery Management System (BMS) , this battery actively regulates charging and discharging processes while monitoring voltage, current, and temperature. The BMS ensures optimal performance, longevity, and protection against overcharging, over-discharging, and extreme temperatures. Additional items: This kit also includes 1m positive and negative 35mm² tinned copper battery cables with loose ring terminals for connecting the inverter to the batteries, a 120A fuse or circuit breaker for use between the hybrid inverter and the batteries, 10m solar extension cable with MC4 connectors to connect to the existing 1.25m of solar cable fitted to the solar panels , DC isolator switch for use between the hybrid inverter and the solar panels, and battery linking cable to connect the batteries together. Click on the Details and Specifications tab for more information about this kit.

Specifications

Solar panel specifications (per solar panel): - Peak power: 430W - Maximum power voltage: 32.73V - Maximum power current: 13.14A - Open circuit voltage: 39.09V - Short circuit current: 14.01A - Power tolerance: 0/+5% - Dimensions: 1722 x 1134 x 30 mm - Weight: 20.7 kg - Mounting holes for ease of installation - 2 x 1.25m of high-quality single core solar cable - Male and female MC4 waterproof connectors Hybrid inverter specifications: - Nominal battery voltage: 48V - Continuous power output: 5000W/5000VA (220-240V AC) - Surge power: 10000VA - Output frequency: 50Hz - Output waveform: Pure sine wave - Maximum solar input power: 4000W - Maximum open circuit solar input voltage: 500V (open circuit) - PV Start up voltage: 150V +/- 10V - MPPT solar operating voltage: 120V - 450V - Maximum solar charging current: 80A - Maximum mains AC charging current: 60A - Maximum combined charging current: 80A - Peak efficiency: 93% - Solar / AC charger max efficiency: 98% - Operating temperature: -10 deg C to 50 deg C - Supplied with USB drive, PC connection cable and PC software CD - Size: 44 x 30 x 11.5 cm - Weight: 10 kg Battery specifications: - Nominal voltage: 51.2V - Nominal capacity: 100Ah - Depth of discharge: 95% - Life cycle: 6000 cycles @95% DoD, at 25 deg C - Recommended charge voltage: 58.4V - Maximum charge current: 100A - Recommended charge current: 50A - Maximum discharge current: 100A - Recommended discharge current: 50A - Operating charge temperature: from 0 deg C to +45 deg C - Operating discharge temperature: from -10 deg C to +45 deg C - Humidity: 5-95% (RH) - Altitude: <4000m - Communication ports: RS485/RS232/CAN - Size: 590 x 442 x 177 mm - Weight: 45kg Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter and batteries, and therefore delivered in a separate package. The solar panel is covered by up to a 25-year product guarantee provided by Sharp Electronics. The batteries are covered by a 5 year repair or replacement warranty provided by Photonic Universe. The hybrid inverter is covered by a 1 year manufacturer warranty. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). For more information please refer to our Terms and Conditions . In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%. For installation advice, please click on the Installation tab.

SKUKIT2-5K
