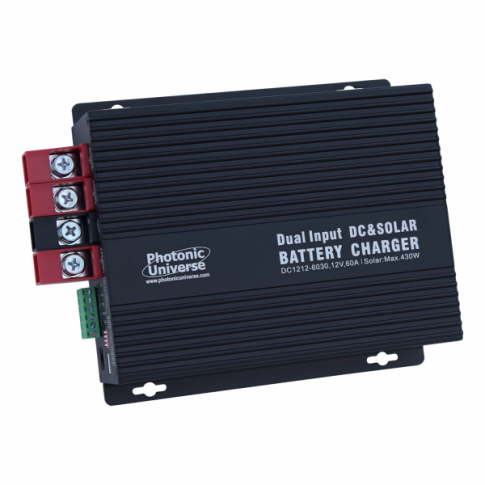

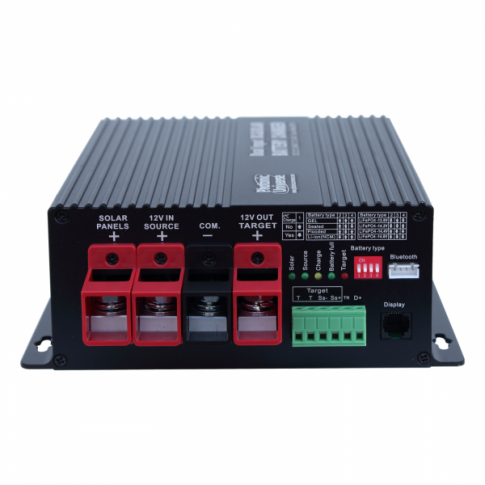

60A 12V DC to 12V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger with 30A MPPT solar input for Lead Acid and Lithium Batteries - view 1
1 / 2
Product Information

60A DC to DC battery charger with 30A MPPT solar input for fast charging of a 12V battery / battery bank from either solar power or another 12V battery / battery bank with its own energy source.

Key features

  • Source battery voltage: 12V Battery input voltage: 10.5V - 16V
  • Effective D+ signal voltage range: 8V - 16V Maximum charging power: 780W Maximum charging current of target battery: 60A Maximum solar power input power: 430W Maximum solar power input current: 24A Maximum solar power open circuit voltage: 50V Maximum charging current from solar to target battery: 30A Charging current to source battery: 0A - 5A Minimum recommended source battery capacity: 80Ah - 100Ah Target rated voltage: 12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion) Target battery capacity: 100Ah - 520Ah Target battery operating voltage range: 8V - 16V Bulk charge voltage: 14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion) Float charge voltage: 13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion) Temperature compensation: -3mV/ deg C/2V Operating temperature: -20 deg C to 50 deg C Self-consumption current: 17mA Relay signal output: 12V / 1A Weight: 1.60kg Dimensions: 190 x 215 x 70mm

Specifications

Range
DC to DC Battery Chargers
Weight
1.60kg
Voltage
12V, 5V, 16V, 8V, 50V, 1V, 7V, 3V, 4V, 6V, 2V
Wattage
780W, 430W
Amps
60A, 30A, 24A, 0A, 5A, 1A
Battery type
LiFePO4
Cable core size
70mm
Controller type
MPPT
Delivery estimate
5-7 working days
Free delivery
Yes
Battery Input Voltage
10.5V - 16V
Bulk Charge Voltage
14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion)
Charging Current To Source Battery
0A - 5A
Dimensions
190 x 215 x 70mm
Effective D Signal Voltage Range
8V - 16V
Float Charge Voltage
13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion)
Maximum Charging Current From Solar To Target Battery
30A
Maximum Charging Current Of Target Battery
60A
Maximum Charging Power
780W
Maximum Solar Power Input Current
24A
Maximum Solar Power Input Power
430W
Maximum Solar Power Open Circuit Voltage
50V
Minimum Recommended Source Battery Capacity
80Ah - 100Ah
Operating Temperature
-20 deg C to 50 deg C
Product family
Charge Controllers & Chargers
Relay Signal Output
12V / 1A
Self Consumption Current
17mA
Source Battery Voltage
12V
Target Battery Capacity
100Ah - 520Ah
Target Battery Operating Voltage Range
8V - 16V
Target Rated Voltage
12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion)
Temperature Compensation
-3mV/ deg C/2V

Overview

This powerful Photonic Universe 60A advanced DC-DC Battery Charger is fully automatic and ideal for leisure vehicles, commercial and special purpose vehicles, boats, and any other systems with multiple 12V batteries or power sources. The charger operates using an adjustable three-stage charging programme and is suitable for Lead Acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. The product is compact, light-weight and features high frequency switching and buck-boost power conversion technology for reliable, consistent performance. The charger comes with a powerful built-in MPPT solar charge controller, enhancing its capability with additional charging from solar panels. The unit will charge the target battery from solar panels whenever the DC-to-DC charging is not active. This is useful in applications where the DC-to-DC charging function is not used for significant periods of time, such as when a vehicle is parked or in storage, or when supplementary charging from solar panels is needed. MPPT technology of this charger extracts the energy from solar panels with the maximum efficiency which significantly exceeds efficiency of other non-MPPT chargers. The solar charging function will also provide a trickle charge to the source battery to prevent it from self-discharging. Key Features: - Fully-automatic, high-frequency, multi-stage charging: ensures the battery is charged safely and quickly. Pulsed charging keeps temperatures low and helps ensure a long battery life. - Efficient 30A MPPT solar charge controller: the controller specifically pinpoints the maximum power voltage point of the solar panel(s) as it varies depending on sunlight exposure and temperature. This ensures the maximum output from the solar panels and shorter charging times. - Easy battery type selection: with the use of dip switches, the unit can be switched between Lead Acid, AGM, Gel, LiFePO4, or Lithium-ion battery types. - Safe unattended charging: the unit features inbuilt safety functions (protection against overload, overheating, overvoltage, over-discharge, short circuit, and reverse discharge of the battery), that allow the charger to be left permanently connected to the batteries for unattended automatic charging. - Advanced temperature protection and compensation: when paired with an optional external temperature sensor (sold separately), the charger provides advanced temperature protection for the batteries. For Lead Acid batteries, the charger adjusts the charging voltage to compensate for ambient temperature, ensuring optimal charging and extending battery life. For Lithium batteries, the temperature sensor unlocks a charging protection to be selected to prevent charging when below 0 deg C which could damage the battery. - Data monitoring: the charger includes ports for a remote meter or a Bluetooth module (both sold separately), allowing data to be viewed on an LCD display or through a mobile phone app when connected. - Continued charging during battery/load use: the charger will continue to operate at full power whilst energy is drawn from the battery during use. Any 12V loads may also be left permanently connected and running whilst the DC-to-DC charger is in operation, and will be protected against overvoltage and voltage fluctuations. - Ignition on/off control: via connection to the ignition control through the D+ terminal, this charger can be set to begin battery-to-battery charging immediately when vehicle ignition is turned on, and stop charging when the vehicle is turned off. - Wake - up function for Lithium batteries: when the Battery Management System (BMS) of a lithium battery goes into the protection mode, the charger can automatically activate the BMS and continue charging the lithium battery. - Source battery voltage control: The charger can turn itself on and off based on the source battery voltage. This ensures that charging only occurs when the source battery has sufficient voltage, preventing excessive discharge and protecting the battery from deep cycling damage. This feature is particularly useful in vehicles or marine applications where the alternator or solar power may not always provide a consistent supply of energy. Additional features: A high efficiency built-in MPPT solar charge controller is included in the device to enhance charging capabilities to the target battery from solar panels whenever DC-to-DC charging is not active, such as when the vehicle is parked up or in storage. It will also provide a trickle charge to the starter battery to protect against self-discharge. This charger can provide a signal for an external relay (not supplied), so that when the target battery is connected to a heavy load, the battery banks can be directly connected to each other, allowing the source battery to assist the target battery in starting high-current electrical loads. It features optional terminals that enable greater precision in voltage measurement of the target battery by bypassing the voltage drops in heavy-duty charging cables. The charger includes 5 LED indicators to display the solar charging state, battery charging stage, and diagnostic information. Compatibility: This DC-to-DC battery charger is suitable for use with 12V lead acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. It is not compatible with 24V batteries or a combination of 12V and 24V batteries. Click on the 'Details and Specifications' tab for more information about this product.

Specifications

Specifications: - Source battery voltage: 12V - Battery input voltage: 10.5V - 16V - Effective D+ signal voltage range: 8V - 16V - Maximum charging power: 780W - Maximum charging current of target battery: 60A - Maximum solar power input power: 430W - Maximum solar power input current: 24A - Maximum solar power open circuit voltage: 50V - Maximum charging current from solar to target battery: 30A - Charging current to source battery: 0A - 5A - Minimum recommended source battery capacity: 80Ah - 100Ah - Target rated voltage: 12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion) - Target battery capacity: 100Ah - 520Ah - Target battery operating voltage range: 8V - 16V - Bulk charge voltage: 14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion) - Float charge voltage: 13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion) - Temperature compensation: -3mV/ deg C/2V - Operating temperature: -20 deg C to 50 deg C - Self-consumption current: 17mA - Relay signal output: 12V / 1A - Weight: 1.60kg - Dimensions: 190 x 215 x 70mm This product is covered by a 1 year manufacturer warranty . For more information please refer to our Terms and Conditions .

SKUDC1212-6030
