Pair of adjustable metal brackets for tilting a solar panel (variable length 390-670mm) - view 1
1 / 4
Product Information

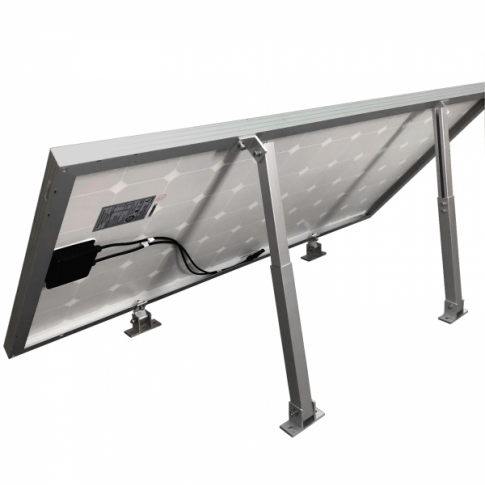

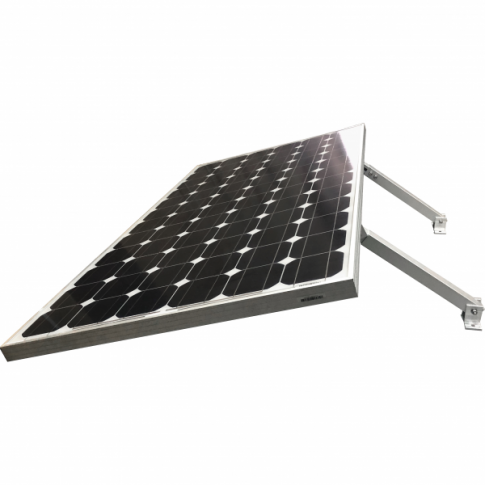

For mounting a solar panel at a 10-60 degrees angle to the surface. Adjustable length of 390-670mm.

Specifications

Range
Mounting accessories
Cable core size
670mm
Delivery estimate
5-7 working days
Free delivery
Yes
Product family
Mounting & Installation

Overview

Key features: - Suitable for mounting a solar panel at a 10-60 degrees angle to the surface - Adjustable length of 390-670mm allows you to choose the best angle for the solar panel depending on the season - ideal for maximising performance - Rubber pads and screws included for fixing to the surface in a waterproof way - Suitable for fixed installations on roofs and flat surfaces Please note: - For windy areas and large solar panels, an additional pair of brackets is recommended for added strength and reduced pressure on the solar panel frame. - These brackets are unsuitable for solar panels with a frame depth of less than 30mm. - The given range of angle adjustability (10 - 60 deg ) is the maximum possible range, which will vary depending on the initial fixing position of the brackets on the mounting surface in relation to the frame of the solar panel. For example, if the base of the brackets is fixed to the mounting surface 'outside' of the solar panel area, the solar panel will be adjustable within a range of narrow angles (e.g. 10-20 deg ). If fixed to the mounting surface 'within' the solar panel area, the solar panel will be adjustable within a range of wider angles (e.g. 50 - 60 deg ). Click on the Installation tab for more information.

SKUMBRTILT01
