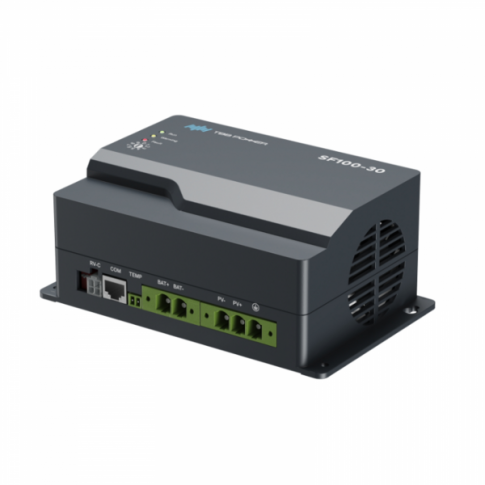

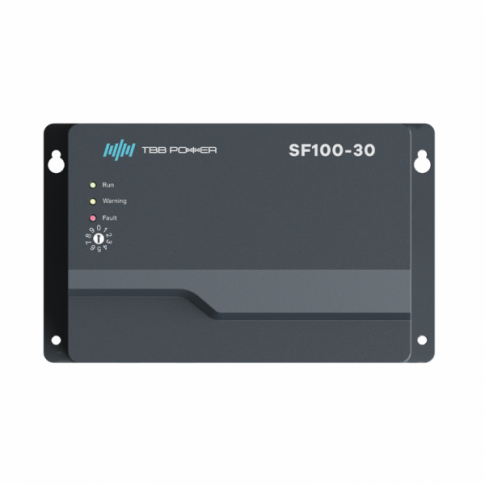

TBB Power 30A 12V/24V MPPT solar charge controller - view 1
1 / 3
Product Information

TBB Power high efficiency 30A MPPT solar charge controller with in-built Bluetooth for solar panels up to 500W (12V battery system) / 1000W (24V battery system) up to 100V. Supports Lithium battery charging.

Key features

Battery voltage: 12V or 24V Rated charge current: 30A PV Max power: 500W@12V /1000W @24V Max PV open circuit voltage: 100V PV operating voltage range: Vbat + 5V-90V Max PV short circuit current: 20A Max MPPT efficiency: 99.9% Battery type: GEL/OpzV, AGM, LFP, WET Communication: RS485 / CAN (RV-C) / Bluetooth Operating temperature: from -40 deg C to +60 deg C Altitude: <5000m Dimensions: 189.6 x 116 x 76mm Weight: 0.82kg

Specifications

Range
MPPT controllers
Weight
0.82kg
Voltage
12V, 24V, 100V, 5V, 90V
Wattage
500W, 1000W
Amps
30A, 20A
Battery type
Gel
Cable core size
76mm
Controller type
MPPT
Delivery estimate
5-7 working days
Free delivery
Yes
Altitude
<5000m
Battery Voltage
12V or 24V
Communication
RS485 / CAN (RV-C) / Bluetooth
Dimensions
189.6 x 116 x 76mm
Max Mppt Efficiency
99.9%
Max Pv Open Circuit Voltage
100V
Max Pv Short Circuit Current
20A
Operating Temperature
from -40 deg C to +60 deg C
Product family
Charge Controllers & Chargers
Pv Max Power
500W@12V /1000W @24V
Pv Operating Voltage Range
Vbat + 5V-90V
Rated Charge Current
30A

Overview

The TBB-SF100-30 is a high-performance MPPT solar charge controller designed to maximize solar energy utilization with advanced maximum power point tracking (MPPT) technology. Engineered for efficiency and reliability, this controller ensures optimal charging performance for various battery types while offering seamless system integration through multiple communication protocols. Key Features: - Advanced MPPT Technology: The TBB-SF100-30 controller rapidly and accurately tracks the maximum power point of the solar array, optimising real-time energy harvesting and increasing charging efficiency by up to 30% compared to conventional controllers. - High Efficiency Performance: Achieving a peak conversion efficiency of >=97.2% and MPPT efficiency of >=99.9%, the controller minimizes power loss and maximizes battery charging performance. - Wide Battery Compatibility: The TBB-SF100-30 supports charging for 12V and 24V battery systems, including Lithium (LiFePO4), Gel, AGM, and Lead-Acid batteries. Its multi-stage charging algorithm (Bulk-Absorption-Float-Recycle) ensures precise and efficient battery management. - Smart Communication & Monitoring: Equipped with RS485, CAN, and built-in Bluetooth connectivity, the controller allows real-time monitoring and configuration via the Solar Mate II app on smartphones and tablets (available on IOS or Android ). It also stores historical data, including daily, monthly, and total power generation statistics, as well as event records for troubleshooting. - Battery Temperature Compensation: When using an optional Battery Temperature Sensor (BTS) , the controller dynamically adjusts charging voltage based on battery temperature, preventing overcharging or undercharging in extreme conditions. Compensation can be configured via the Solar Mate II app. - Extreme Environment Resilience: Designed to withstand harsh climates, the controller supports solar charging at temperatures ranging from -40 deg C to 60 deg C , ensuring reliable operation in diverse applications. - Flexible Installation: The TBB-SF100-30 can be mounted in multiple orientations for easy integration into existing systems. - Parallel Capabilities: Multiple units can be connected in parallel via the RV-C ports. The TBB-SF100-30 controller supports up to four devices in parallel configuration. Built-in Protection Features: - PV Input Reverse Polarity Protection: Automatically shuts down in case of incorrect PV wiring. - PV Overvoltage Protection: Prevents damage from excessive input voltage. - Controller Overtemperature Protection: Dynamically reduces output power and shuts down if internal temperatures exceed safe thresholds. - Battery Overtemperature Protection: Monitors battery temperature in real-time (when BTS is connected) and adjusts charging current to prevent overheating. The TBB-SF100-30 is an ideal solution for off-grid solar systems, RVs, marine applications, and backup power setups, delivering superior energy efficiency, intelligent monitoring, and robust protection for long-term performance and reliability. Click on the Details and Specifications tab for more information about this product.

Specifications

Controller specifications: - Battery voltage: 12V or 24V - Rated charge current: 30A - PV Max power: 500W@12V /1000W @24V - Max PV open circuit voltage: 100V - PV operating voltage range: Vbat + 5V-90V - Max PV short circuit current: 20A - Max MPPT efficiency: 99.9% - Battery type: GEL/OpzV, AGM, LFP, WET - Communication: RS485 / CAN (RV-C) / Bluetooth - Operating temperature: from -40 deg C to +60 deg C - Altitude: <5000m - Dimensions: 189.6 x 116 x 76mm - Weight: 0.82kg The product is covered by a 5 year warranty . For more information please refer to our Terms and Conditions .

SKUTBB-SF100-30
