820W 24V Complete Off-grid solar power system with 2 x 410W Sharp solar panels, 3kW hybrid inverter and 4 x 100Ah batteries
Off-grid solar kits

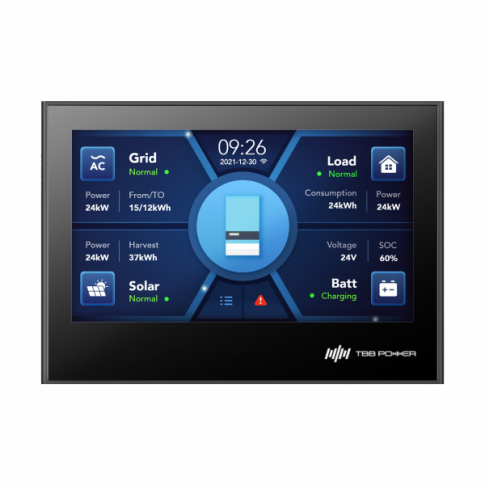

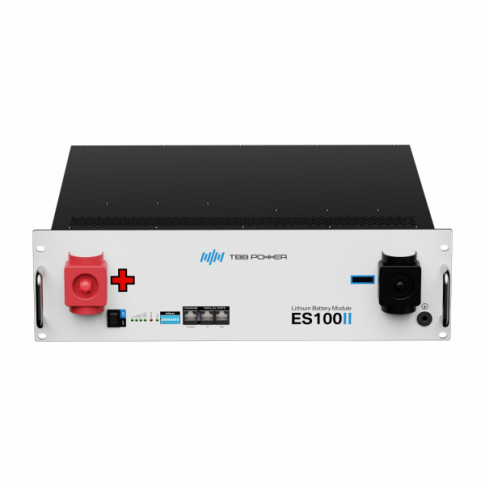

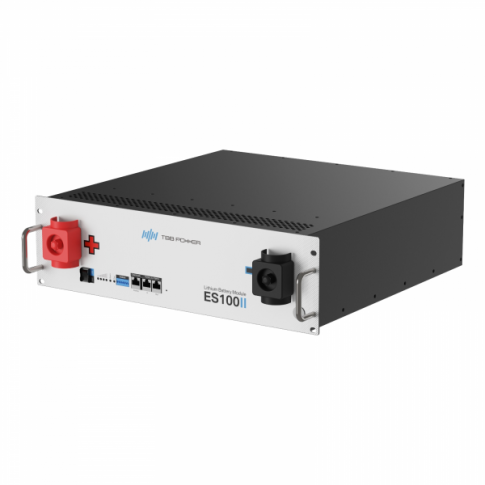

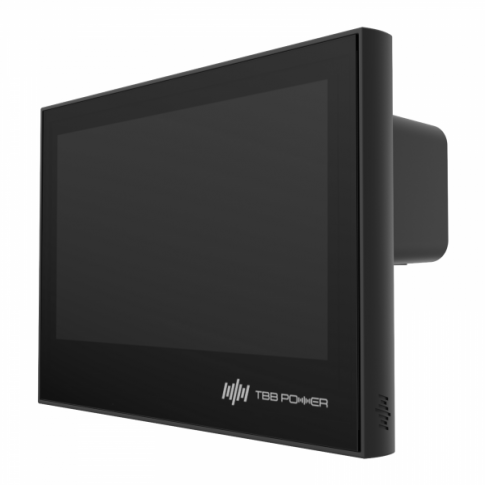

An advanced 8kW all-in-one solar power system designed to provide reliable and sustainable energy for off-grid homes, holiday houses, and remote applications. Combining the 8kW 48V RIIOSUN hybrid inverter and the TBB-E4 monitor into a single compact unit with 4 x ES100II lithium batteries.
Nominal voltage: 48V Nominal capacity: 10.08kWh – 20.16kWh Maximum output power: 8000W Dimensions: 750 x 650 x 1130 mm Weight: 140 kg Nominal battery voltage: 48V Continuous power output: 8000W/8000VA (220-240V AC) Peak power: 16000W AC Output frequency: 50/60Hz Output waveform: Pure sine wave Maximum mains AC charging current: 90A AC transfer current: 50A Peak efficiency: 95% Zero load power: 32W Maximum solar output current: 100A (50A per tracker) Maximum charge power: 5760W @57.6V (2880W @57.6V per tracker) Maximum PV open circuit: 250V Maximum PV power per tracker: 4400W + 4400W MPPT voltage range: 65 - 245V Peak MPPT efficinecy: 98% Operating temperature: from -20 deg C to +65 deg C Nominal voltage: 48V Work voltage range: 42 – 54.75V Nominal capacity: 105Ah Peak current: 120A Maximum charge and discharge current: 105A Recommened charge and discharge current: 52.5A Self-discharging rate: <3% per month Cycle life: 6000 (90% DoD, 70% SoH), @25 deg C, 0.5C Operating discharge temperature: from -20 deg C to +55 deg C Operating charge temperature: from 0 deg C to +55 deg C Nominal input voltage: 12V Operating current: 100mA LCD size: 4.3 inches Display screen size: 95.04 x 53.86 mm Communication ports: RS485 and CAN

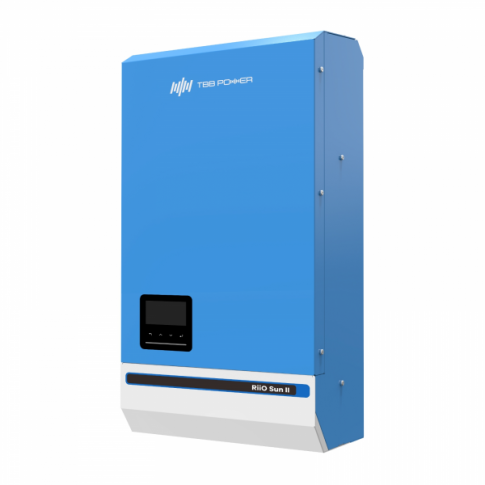

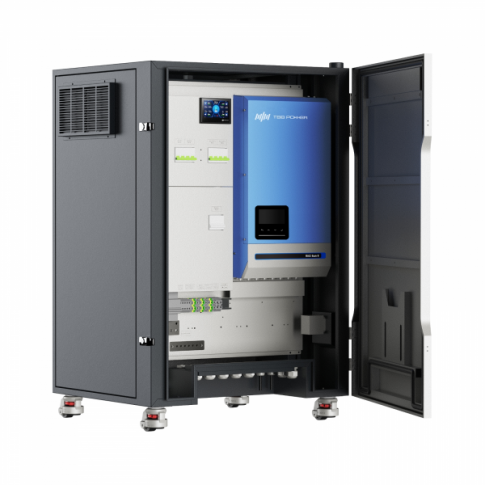

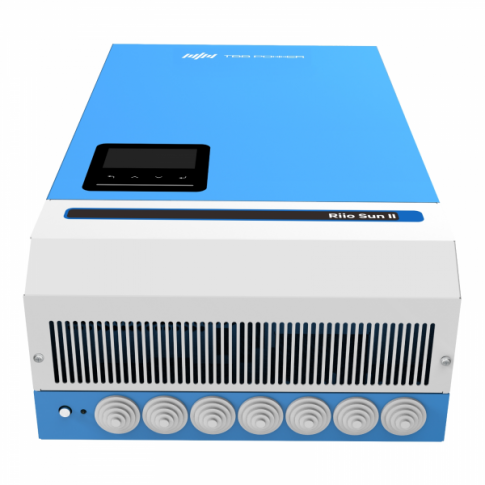

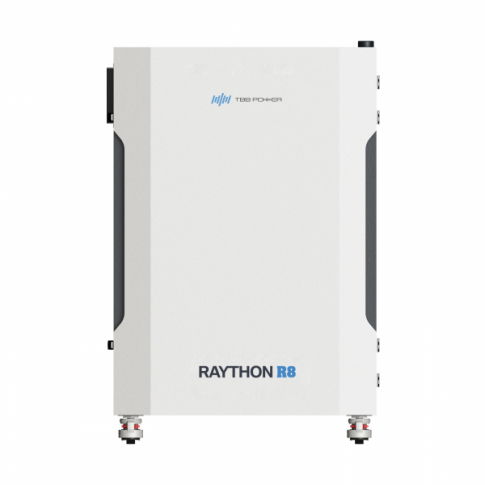

The Raython-R8 is an advanced 8kW all-in-one solar power system designed to provide reliable and sustainable energy for off-grid homes, holiday houses, and remote applications. By combining the 8kW 48V RIIOSUN hybrid inverter , the TBB-E4 monitor , and four ES100II lithium batteries into a single compact unit, the Raython-R8 delivers a powerful and user-friendly energy solution. This system is ideal for locations without grid access, where generators are commonly used, offering a cleaner, quieter, and more efficient alternative to traditional power sources. Key Features: All-In-One Design for Simple Installation The Raython-R8 is factory pre-assembled and fully tested, reducing installation time to under three hours. It features a rugged IP54-rated enclosure , ensuring protection against dust and water ingress—perfect for indoor or outdoor deployment . Sustainable and Efficient Energy Solution The system integrates solar generation , battery storage , and intelligent energy management to minimise fossil fuel usage. Compared to conventional generator-only systems, it significantly reduces noise, emissions, and fuel consumption—helping you operate sustainably and cost-effectively. Seamless Generator Integration with AGS Function The built-in Automatic Generator Start (AGS) feature intelligently manages generator usage based on load, battery state-of-charge, or time schedules. When paired with larger generators , the Raython-R8 enables them to run for shorter, high-output periods , greatly improving fuel efficiency by reducing idle or low-load runtime. Hybrid Generator Kit Compatibility Designed to work seamlessly in hybrid generator setups , the Raython-R8 allows smart energy blending between renewable and generator sources—offering reliable backup without sacrificing efficiency. Advanced Load Management & Power Assist Its high surge capacity makes it ideal for heavy inductive loads like air conditioners, pumps, and power tools. With Power Assist , the system can temporarily combine battery and generator power, preventing overload and allowing use of smaller or existing generators without system compromise. Fast Transfer Time With a transfer time of just 4ms , the Raython-R8 ensures near-instant switchover between power sources, providing uninterrupted operation for sensitive appliances and critical systems. Reliable and Intelligent Energy Distribution The built-in smart EMS (Energy Management System) dynamically balances solar, battery, and generator power. AC output includes leakage protection for enhanced safety, while smart load prioritisation ensures critical loads are always powered. Remote Monitoring and Smart Control With integrated support for the TBB E4 display and the NOVA Web and mobile app , users can remotely monitor performance, view historical data, and fine-tune settings to optimise performance and boost solar self-consumption. Included with the RAYTHON-R8-4B: - 8kW 48V TBB Power RIIOSUN-II Hybrid Inverter Charger (Transformer-based design) - 4 x ES100II 48V 105Ah 5.04kWh rack mounted Lithium Batteries - TBB Power E4 LCD Monitor - IP54-rated portable cabinet with: - Pre-wired cables - AC/DC switches - AC/DC circuit breakers - Cooling fans - Racking space for 4 x ES100II For users seeking a powerful, fuel-efficient , and intelligently integrated solar power system , the Raython-R8 delivers exceptional performance with minimal setup and maximum control—ideal for off-grid living, hybrid systems, and backup power in remote locations . Click on the Details and Specifications tab for more information about this kit.
Raython-R8 specifications: - Nominal voltage: 48V - Nominal capacity: 10.08kWh – 20.16kWh - Maximum output power: 8000W - Dimensions: 750 x 650 x 1130 mm - Weight: 140 kg Inverter specifications: - Nominal battery voltage: 48V - Continuous power output: 8000W/8000VA (220-240V AC) - Peak power: 16000W - AC Output frequency: 50/60Hz - Output waveform: Pure sine wave - Maximum mains AC charging current: 90A - AC transfer current: 50A - Peak efficiency: 95% - Zero load power: 32W - Maximum solar output current: 100A (50A per tracker) - Maximum charge power: 5760W @57.6V (2880W @57.6V per tracker) - Maximum PV open circuit: 250V - Maximum PV power per tracker: 4400W + 4400W - MPPT voltage range: 65 - 245V - Peak MPPT efficinecy: 98% - Operating temperature: from -20 deg C to +65 deg C Battery specifications (per battery): - Nominal voltage: 48V - Work voltage range: 42 – 54.75V - Nominal capacity: 105Ah - Peak current: 120A - Maximum charge and discharge current: 105A - Recommened charge and discharge current: 52.5A - Self-discharging rate: <3% per month - Cycle life: 6000 (90% DoD, 70% SoH), @25 deg C, 0.5C - Operating discharge temperature: from -20 deg C to +55 deg C - Operating charge temperature: from 0 deg C to +55 deg C Monitor specifications: - Nominal input voltage: 12V - Operating current: 100mA - LCD size: 4.3 inches - Display screen size: 95.04 x 53.86 mm - Communication ports: RS485 and CAN This product is covered by a 5 year warranty . For more information please refer to our Terms and Conditions . For installation advice, please click on the Installation tab.
Eligible products ship free in 5-7 working days. Other ranges may have separate delivery timings.
Contact us if a product detail is unclear and we'll check it before you order.
Return eligible items in unused condition and we'll keep the process simple.
