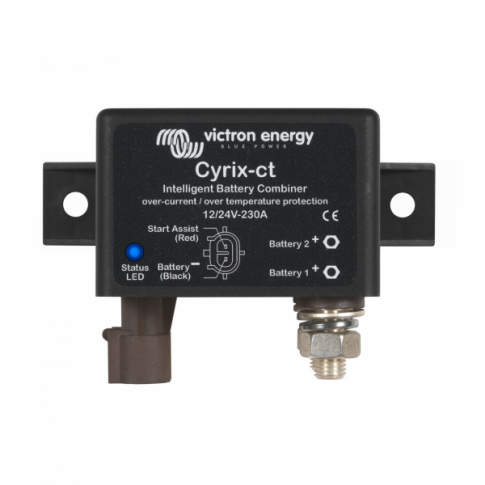

Victron Cyrix-ct 230A 12/24V Intelligent Battery Combiner - view 1
Product Information

Intelligent, Voltage-sensing Battery Combiner for combining vehicle/motorhome/boat starter and leisure batteries into parallel charging systems. Suitable for 12V or 24V systems.

Key features

Continuous current: 230A Cranking current (5 secs): 500A Standby consumption: <4mA Rated voltage: 12V / 24V Terminal size: 8mm Dimensions: 65 x 100 x 50 mm Weight: 270g

Specifications

Range
DC to DC Battery Chargers
Size
8mm
Weight
270g
Voltage
12/24V, 12V, 24V
Amps
230A, 500A
Cable core size
8mm
Delivery estimate
5-7 working days
Free delivery
Yes
Continuous Current
230A
Cranking Current
500A
Dimensions
65 x 100 x 50 mm
Product family
Charge Controllers & Chargers
Rated Voltage
12V / 24V
Standby Consumption
<4mA
Terminal Size
8mm

Overview

Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high-quality hybrid power electronics. Victron Energy products have a longstanding reputation for their outstanding reliability, innovative design and superior build quality. This 230A Victron Cyrix-ct intelligent battery combiner automatically connects and disconnects two independent battery banks based on voltage trends, optimising the sharing of power between batteries. This is perfect for vehicle battery systems where alternator charging can be shared with the leisure battery, and leisure charging (such as solar power or mains hook-up) can be shared with the engine starter battery. Key Features - Intelligent monitoring and tracking of both battery systems, shares charging without over-discharging either battery - Full protection against over-discharge, overcurrent, over-temperature or over-voltage - Automatic 12V/24V system voltage detection - No loss of voltage between batteries - Bi-directional power flow shares charging in both directions - Start Assist manual override, allows leisure battery to assist with engine start-up in case of starter battery damage or deep discharge This product comes with a 1m control cable for connecting the negative voltage-sensing cable and the optional Start Assist override. Note: both battery banks in the system must have the same rated voltage. Smart alternators in Euro 6 or later engines may not be compatible with Voltage Sensing Relay technology such as this battery combiner. Click on the 'Details and Specifications' tab for more information about this product.

Specifications

Specifications: - Continuous current: 230A - Cranking current (5 secs): 500A - Standby consumption: <4mA - Rated voltage: 12V / 24V - Terminal size: 8mm - Dimensions: 65 x 100 x 50 mm - Weight: 270g This product is covered by a 5 year manufacturer warranty . For more information please refer to our Terms and Conditions .

SKUCYRIX-230A
