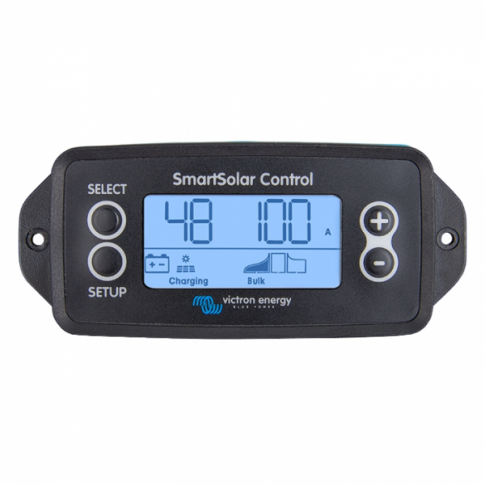

Victron SmartSolar Pluggable LCD Display screen for SmartSolar MPPT solar charge controllers - view 1
1 / 2
Product Information

Optional Plug-in display for SmartSolar MPPT controllers.

Key features

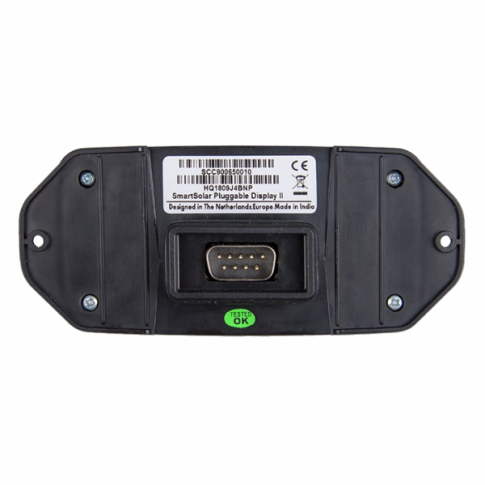

Compatible with Victron SmartSolar MPPT solar charge controllers with a plug-in connection area on the face of the controller Fitted with 2 x self adhesive strips on the back (49 x 8 mm) for secure mounting Dimensions excluding plug (i.e. dimensions when fitted in controller): 97 x 49 x 19 mm Dimensions including plug: (i.e. standalone dimensions): 97 x 49 x 27 mm Weight: 64g

Specifications

Range
Victron Controllers
Weight
64g
Cable core size
8 mm
Controller type
MPPT
Delivery estimate
5-7 working days
Free delivery
Yes
Dimensions Excluding Plug
97 x 49 x 19 mm
Dimensions Including Plug
(i.e. standalone dimensions): 97 x 49 x 27 mm
Product family
Charge Controllers & Chargers

Overview

Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power charging solutions. Victron Energy solar charge controllers and accessories have a longstanding reputation for their outstanding reliability, innovative design and superior build quality. This Victron SmartSolar plug-in display is designed for use with Victron SmartSolar MPPT controllers with a display connection area (for example, VSSM150-60 , VSSM150-70 , VSSM150-85 , VSSM150-100 and other compatible controllers) to enable the advanced programming and monitoring features of the solar charge controller. Key functions: Simply remove the rubber seal on the face of your SmartSolar controller and plug in this LCD display to access a range of monitoring and programming functions , including: - Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current, load status and current, and charging stage information. - Relay programming : SmartSolar controllers feature relay contacts which can be programmed to set off an alarm when specified high/low battery voltages/ a high solar panel voltage or high/low temperatures are reached. The relay can also be programmed to automatically activate a generator if required. - 30-day data logs: System activity is available to view, either as today's values or as cumulative values for the past 30 days. Daily data displayed includes: energy yield, maximum recorded power and voltage, time spent in each charging stage, maximum battery current, minimum and maximum recorded battery voltages and daily error records. 30 day data includes: total cumulative energy yield, maximum recorded solar panel voltage, minimum and maximum recorded battery voltage, and recent errors. - User-defined battery charging algorithm: Option to disable preset values in favour of personalised charging parameters, including user-defined absorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings. - Load configuration: For SmartSolar MPPT controllers with load terminals, there is the option to choose from one of the pre-set load management programs or to create a user-defined load program with personalised voltages. - Temperature sensor readings: Temperature values are available to view for both the battery and the solar charge controller, measured via the inbuilt sensor. Additional features: The user can also adjust backlight settings and text scroll speed. The LCD display also features an On/Off switch for the controller. Click on the Details and Specifications tab for more information about this product.

Specifications

Specifications: - Compatible with Victron SmartSolar MPPT solar charge controllers with a plug-in connection area on the face of the controller - Fitted with 2 x self adhesive strips on the back (49 x 8 mm) for secure mounting - Dimensions excluding plug (i.e. dimensions when fitted in controller): 97 x 49 x 19 mm - Dimensions including plug: (i.e. standalone dimensions): 97 x 49 x 27 mm - Weight: 64g This product is covered by a 5 year warranty . For more information please refer to our Terms and Conditions .

SKUVSS-DISPLAY
