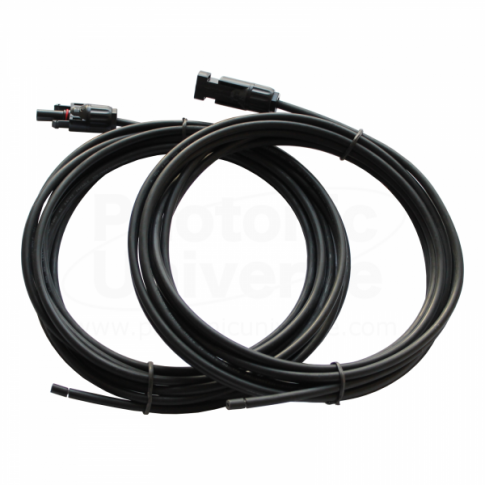

Pair of 5m single core extension cable leads 6.0mm for solar panels and solar charging kits - view 1
Product Information

Brand new 2 x 5m solar extension cables (6.0mm cross section) with waterproof MC4 connectors for solar panels and charging kits up to 300W

Key features

Conductor: tinned copper Cross section: 6.0mm Constrution (N/mm): 84/0.30 Conductor (Dia.): 3.17 Conductor resistance: 3.39 Ohm/km (20C) Insulation and Jacket: 120C XLPE Working temperature range: -40C to +90C Certification: TUV Outer diameter: 7.0 mm

Specifications

Range
Solar Cable
Wattage
300W
Cable core size
6.0mm
Delivery estimate
5-7 working days
Free delivery
Yes
Certification
TUV
Conductor
tinned copper
Conductor Resistance
3.39 Ohm/km (20C)
Constrution
84/0.30
Cross Section
6.0mm
Insulation And Jacket
120C XLPE
Outer Diameter
7.0 mm
Product family
Cabling & Connectors
Working Temperature Range
-40C to +90C

Overview

This pair of single core solar extension cables is specially designed for solar panels to carry high current and have negligible power loss. It comes with waterproof MC4 connectors ("male" on one lead, "female" on the other lead) which can be easily connected to similar MC4-type connectors coming with most solar panels, including Photonic Universe solar panels. This cable is suitable for all weather conditions including cold and hot temperatures. 6.0mm cross section is usually enough for off-grid 12V solar panels and systems up to 300W, or on-grid panels (typical voltage 30-60V) with higher power rating.

Specifications

Cable specifications: - Conductor: tinned copper - Cross section: 6.0mm - Constrution (N/mm): 84/0.30 - Conductor (Dia.): 3.17 - Conductor resistance: 3.39 Ohm/km (20C) - Insulation and Jacket: 120C XLPE - Working temperature range: -40C to +90C - Certification: TUV - Outer diameter: 7.0 mm

SKU5QM60
